KAIWEETS KC604 Digital Clamp Meter
Prévention de la fraude : votre paiement est sûr et sécurisé.
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.

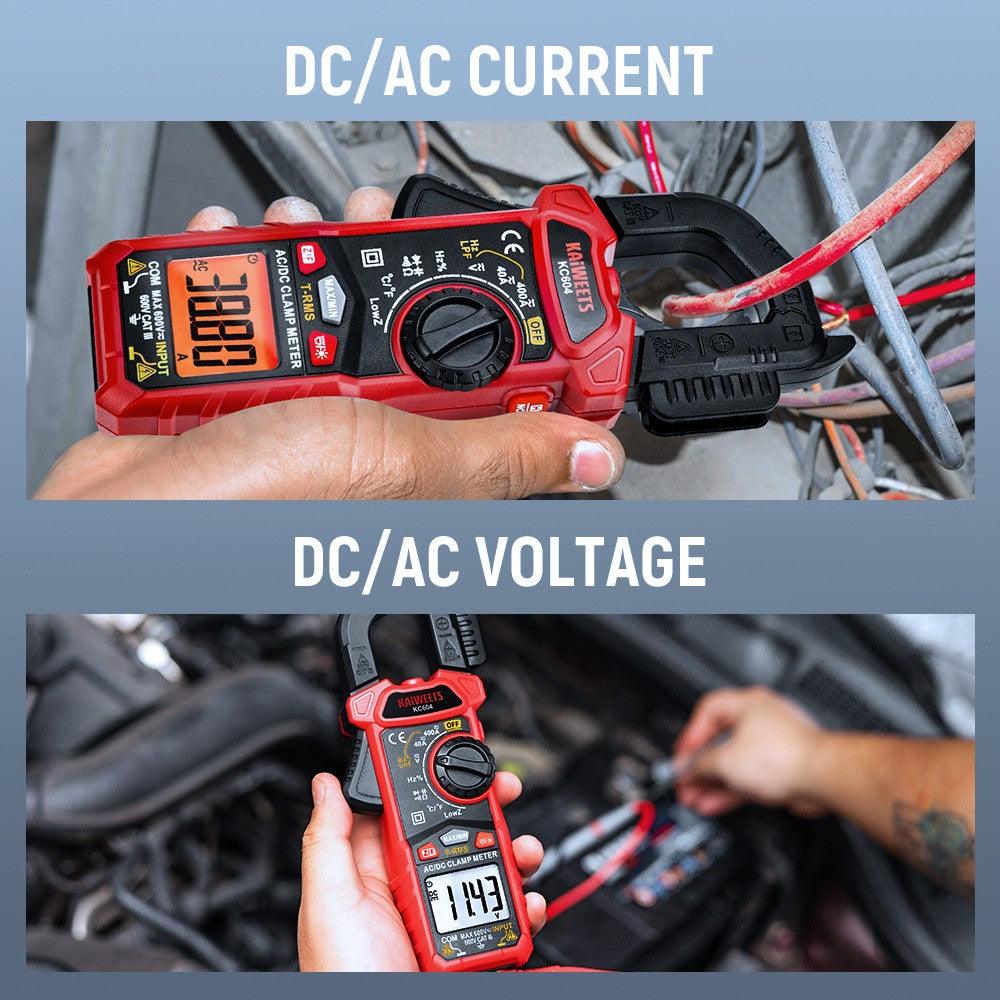

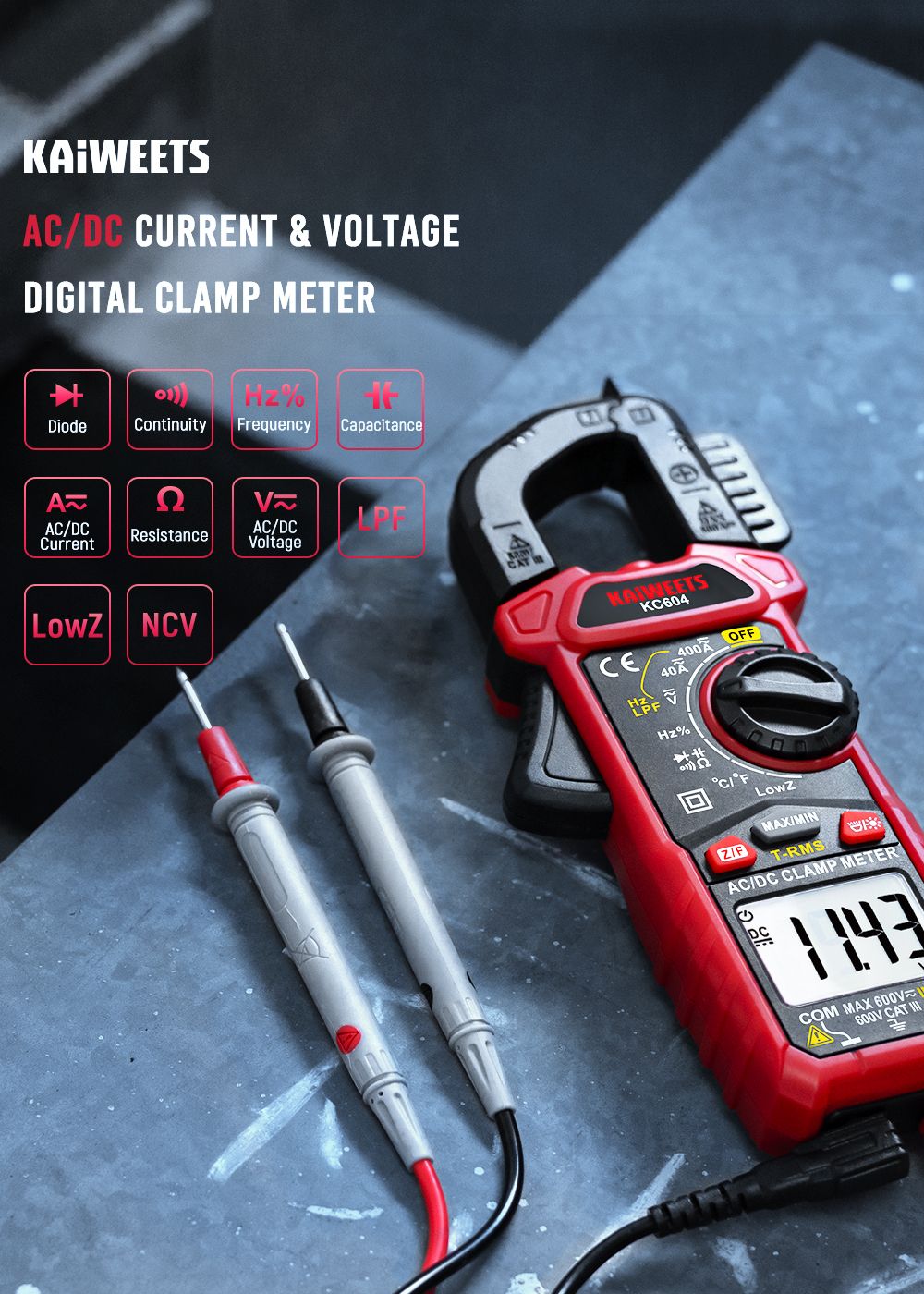

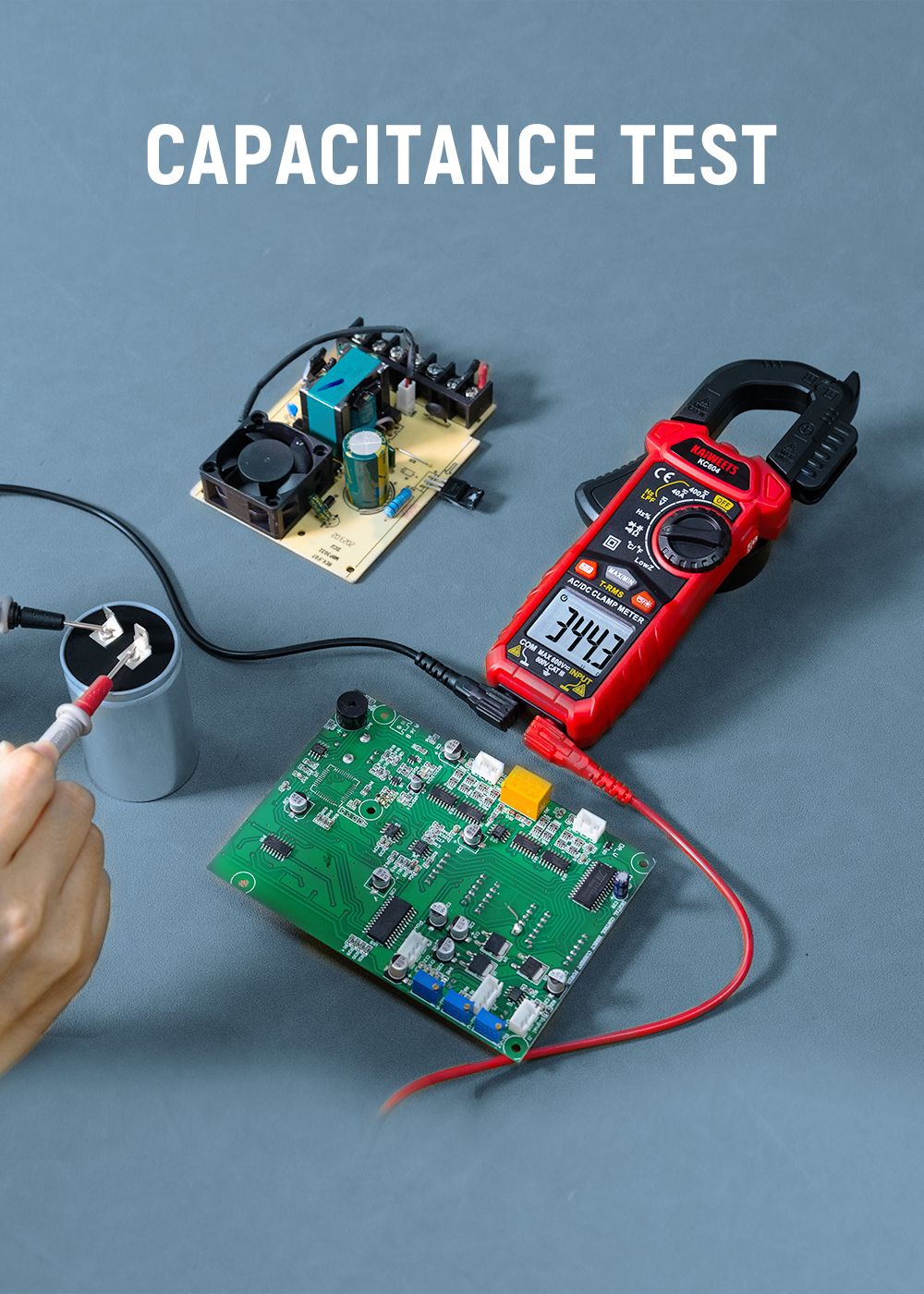

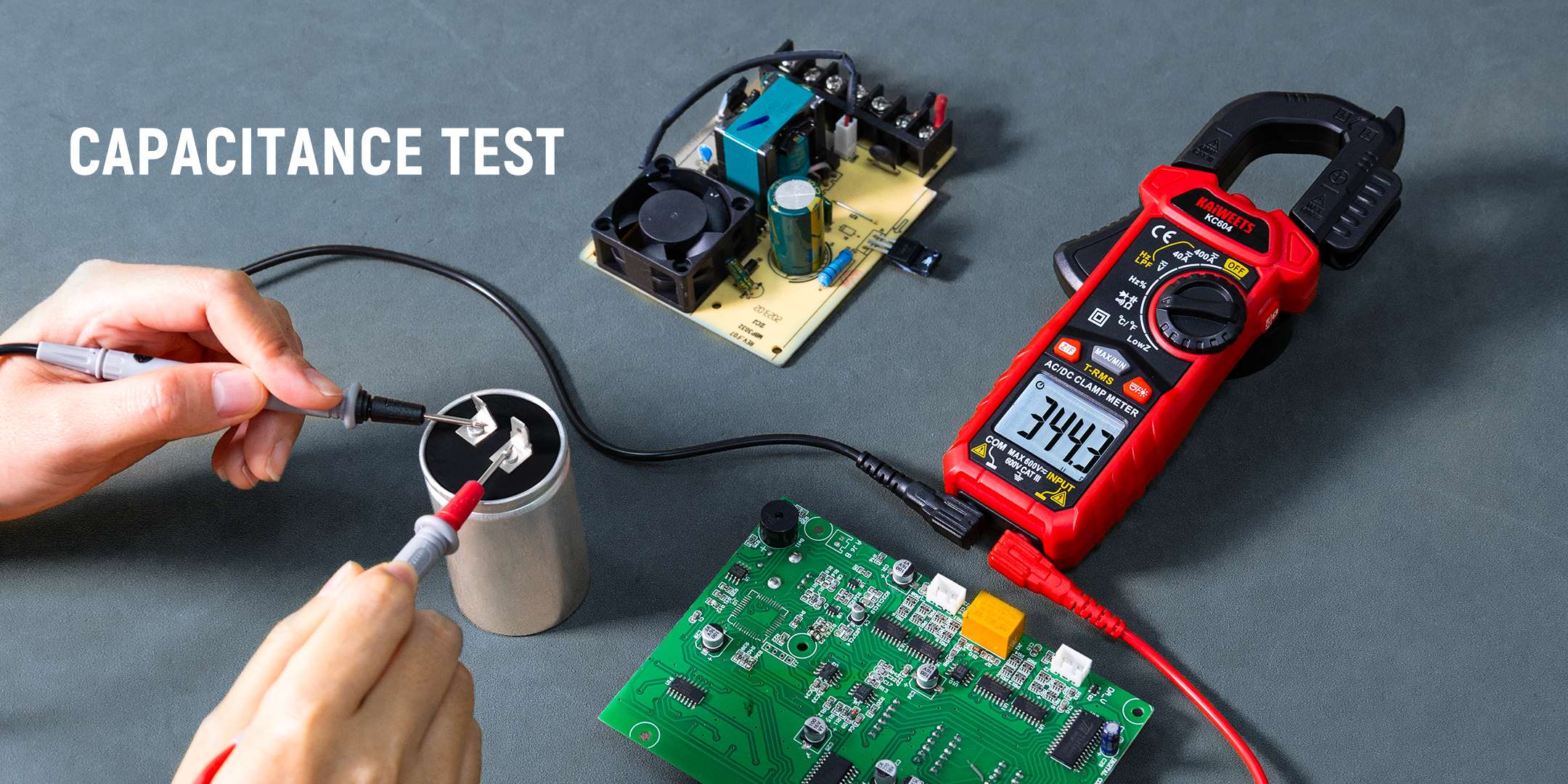

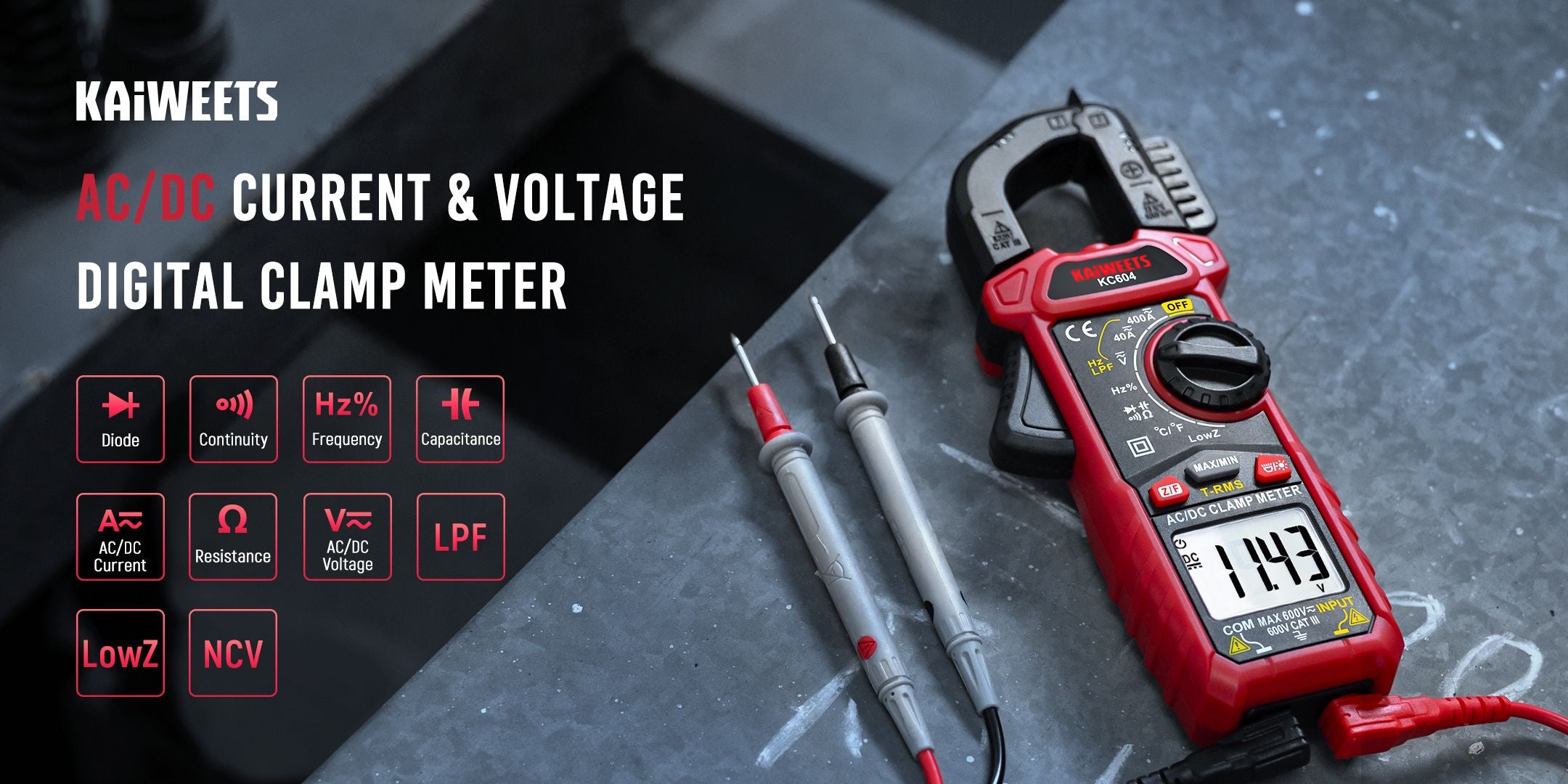

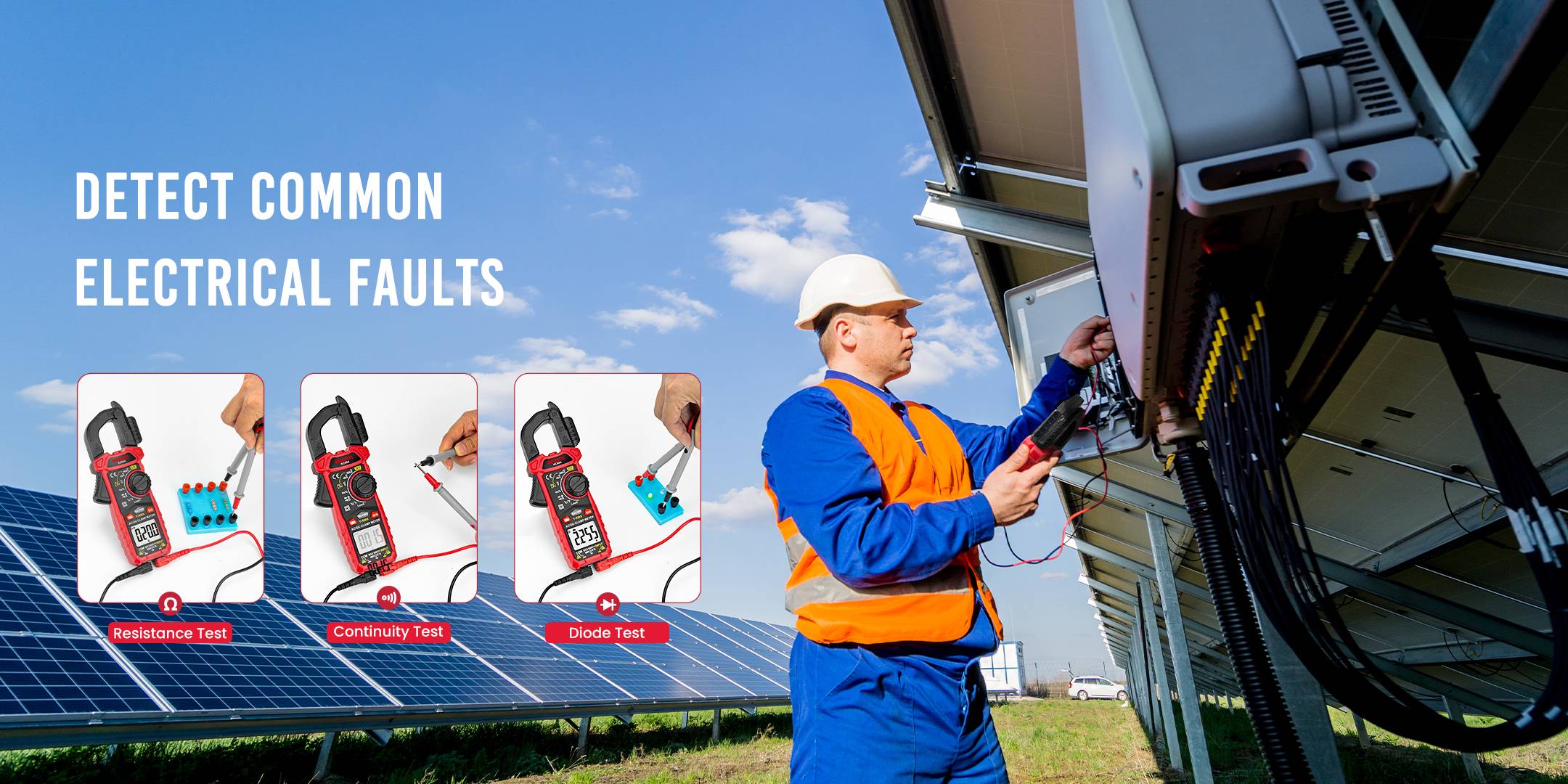

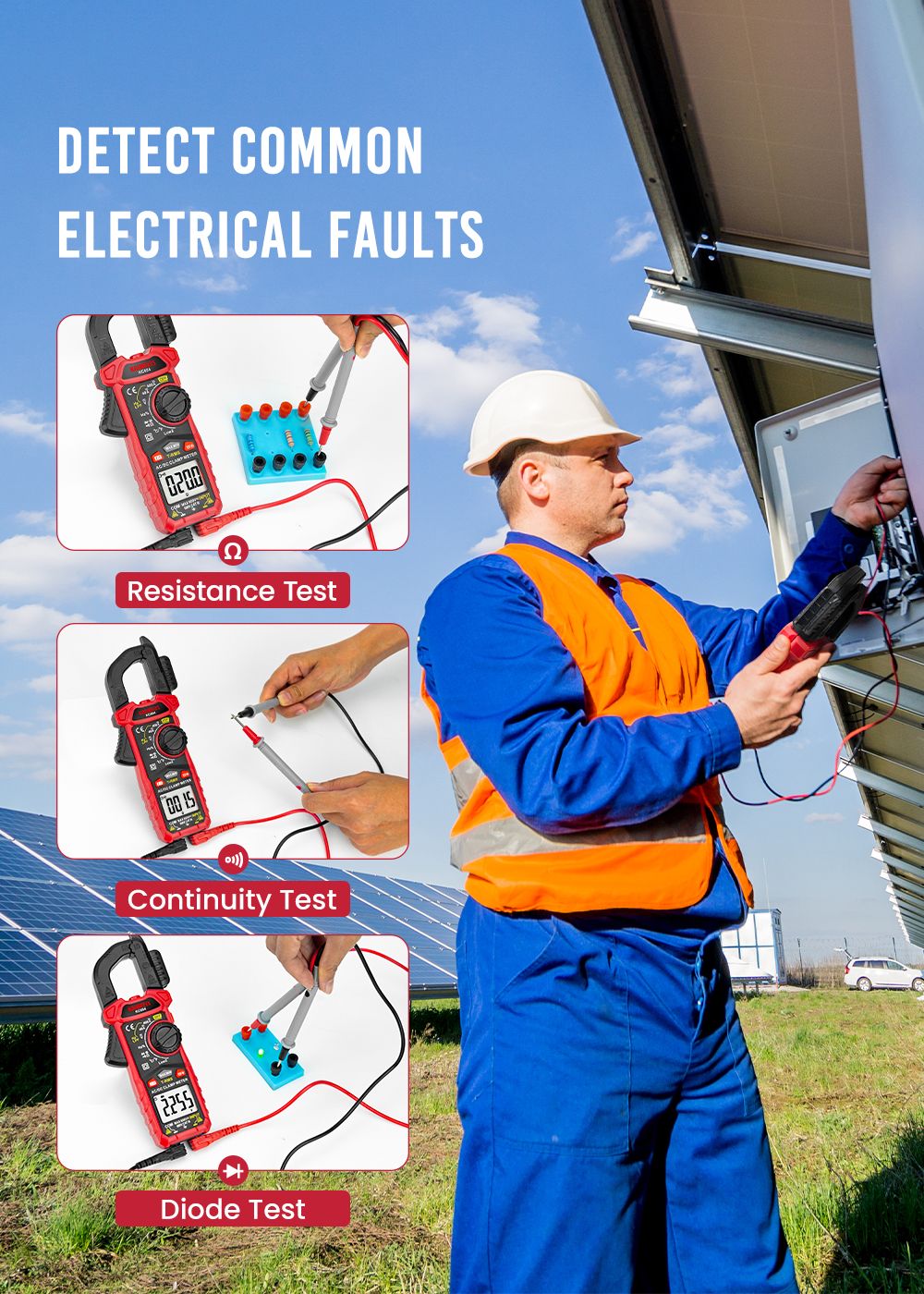

TRUE-RMS AC DC CLAMP METER: This multimeter can accurately measure AC/DC current, AC/DC voltage, temperature (thermocouple included), NCV, capacitance, frequency, resistance, continuity and diode. Good help for troubleshooting the household solar system, automotive and industrial electrical issues, perfect for electricians, DIY, professionals, etc.

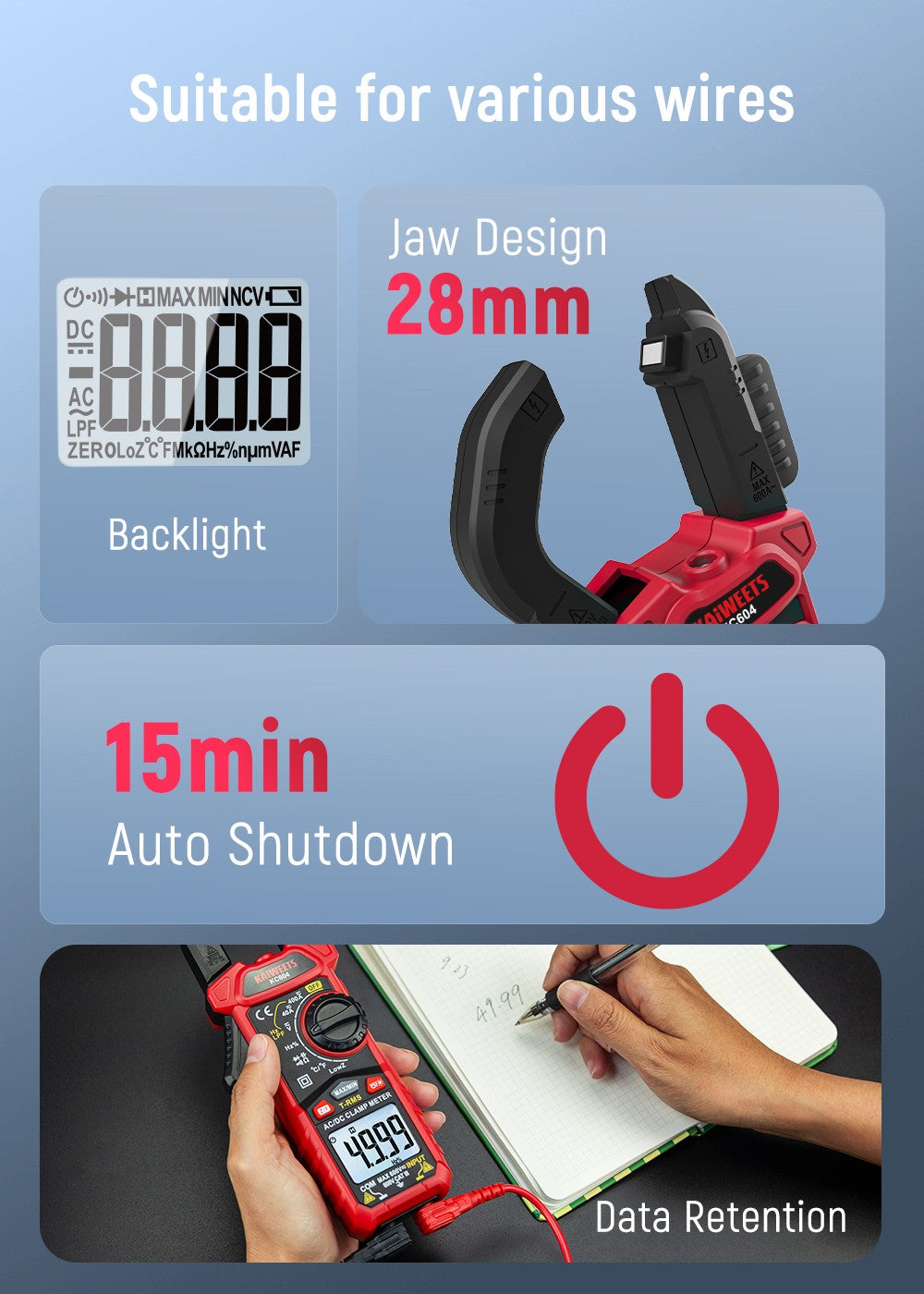

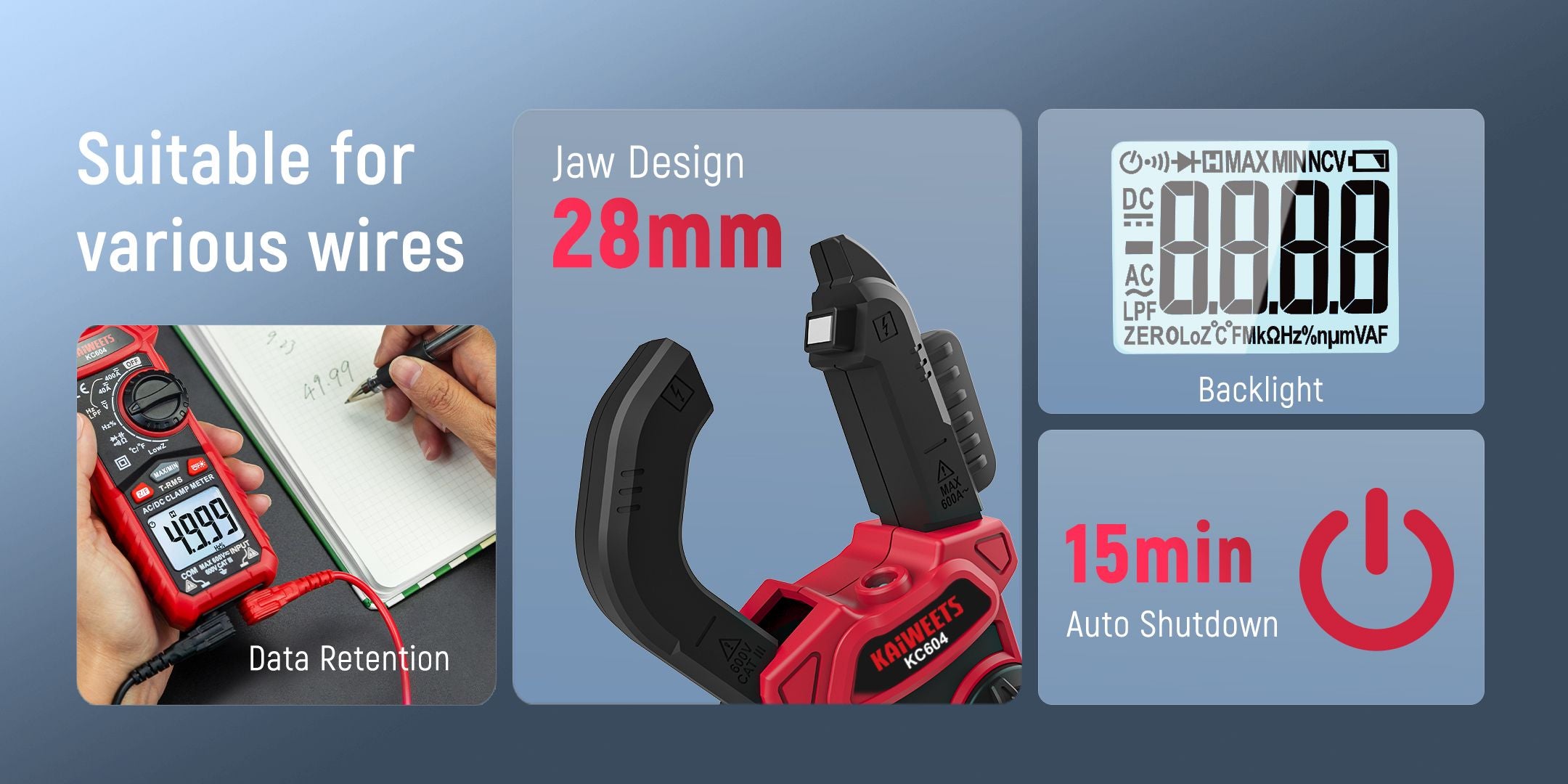

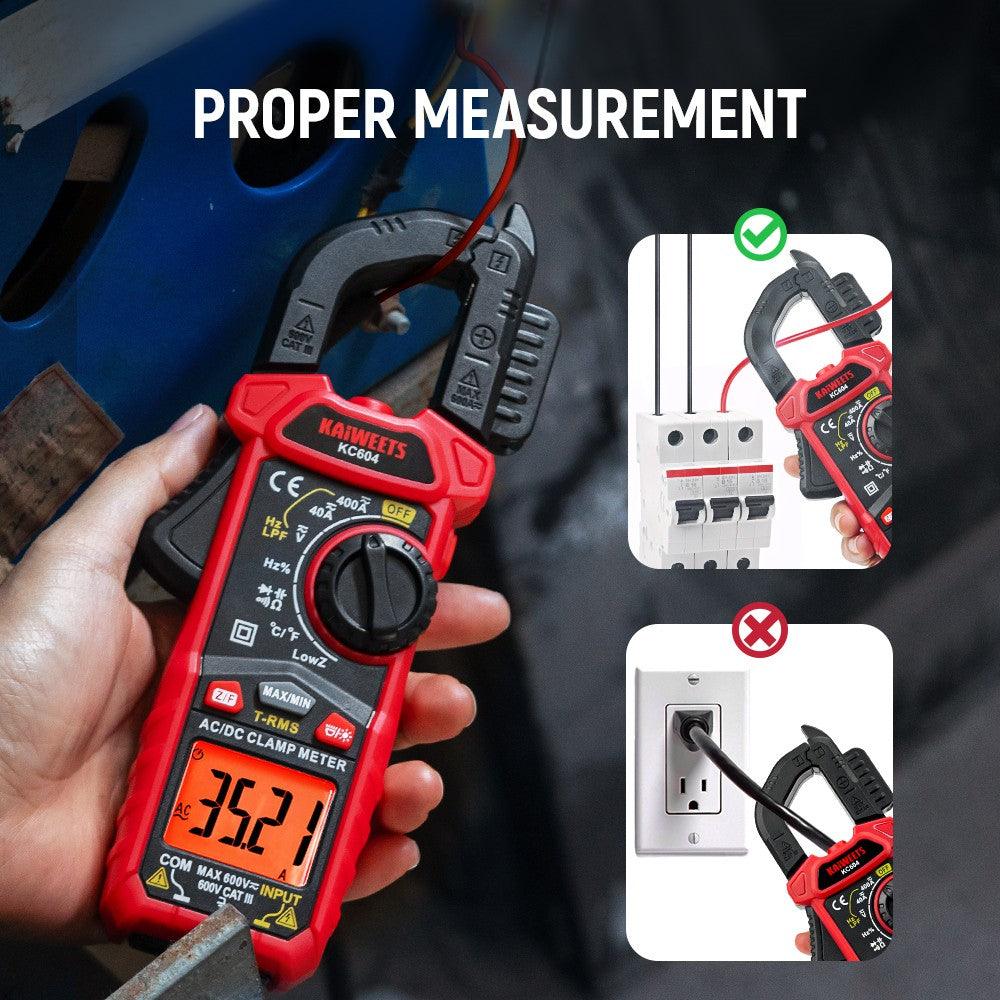

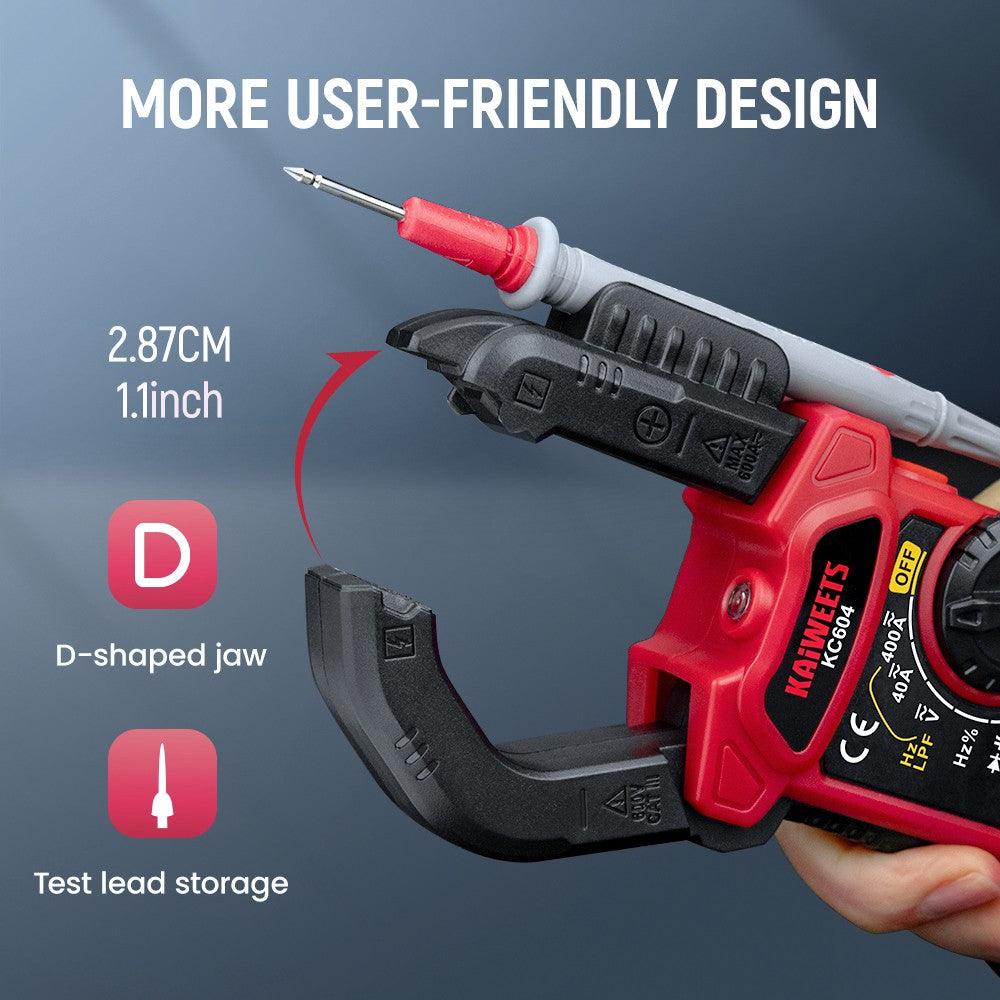

D-SHAPED JAW: Different from other amp meters on the market, the clamp multimeter features a distinctive D-shaped design, and the amp clamp can be opened up to 1.1 inches, providing a convenient and secure way to clamp on various cables.

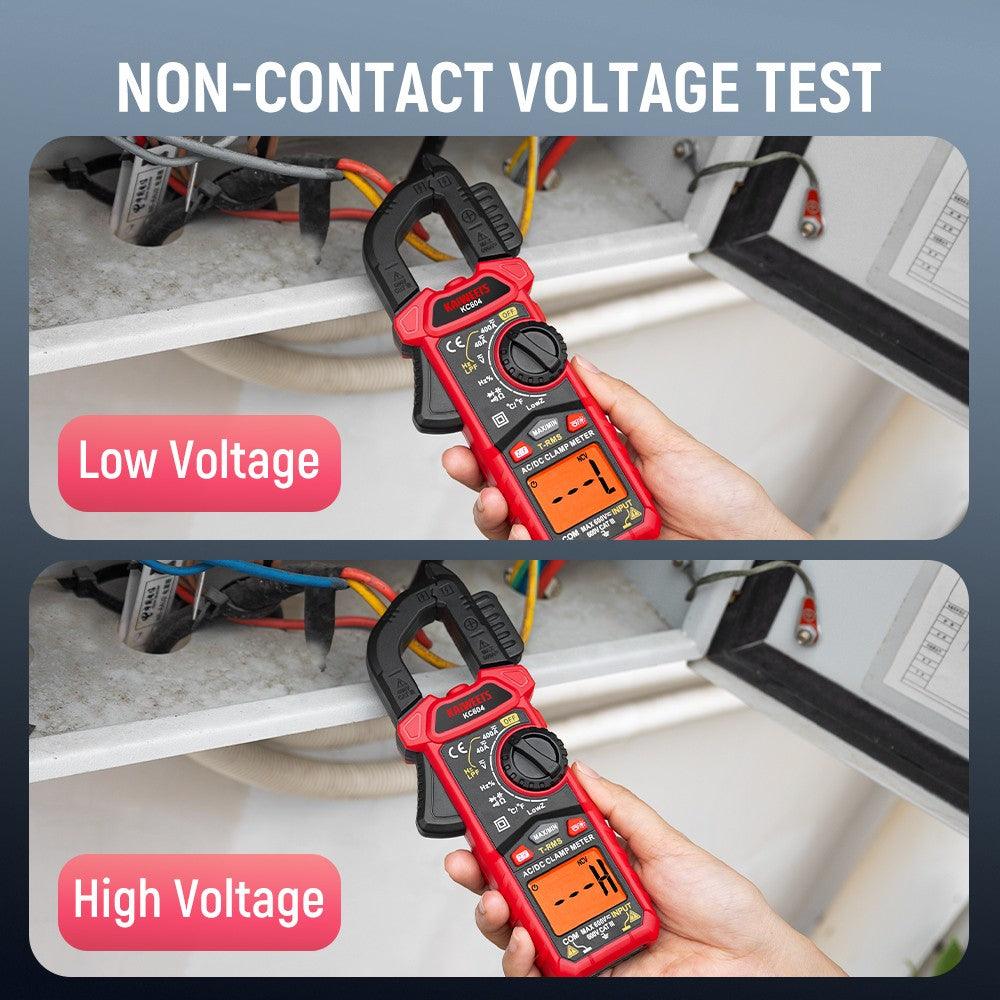

NCV DETECTION: Non-contact voltage testing function helps detect AC voltage without direct circuit contact. By simply pressing the button on the right side of the multimeter tester, it is quick and safe to detect electrical status. Also, it is equipped with audible and visual alarms. The stronger the voltage signal, the faster the buzzer.

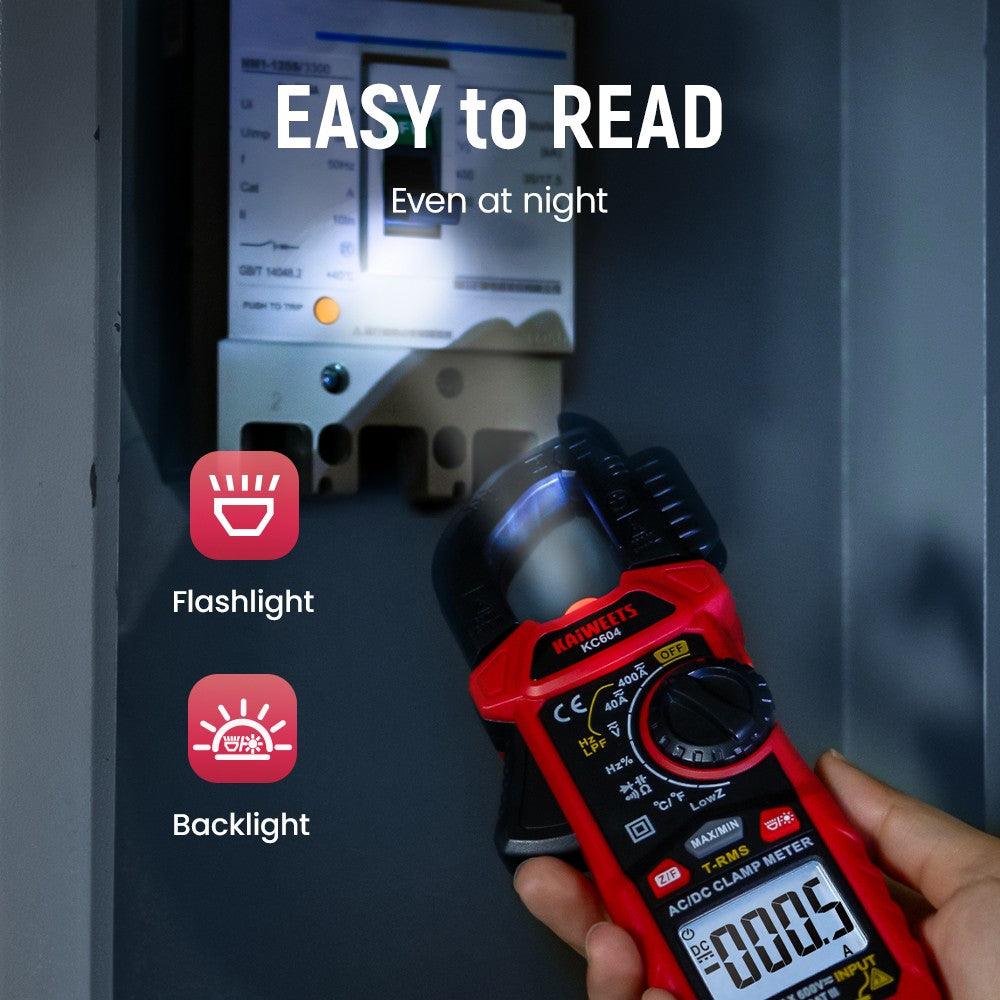

USER FRIENDLY: With test lead storage, meter leads can be protected and stored when not in use. The LCD backlight screen and flashlight ensure clear readings, even in dimly lit areas. Additionally, the low battery indicator shows the battery status and reminds you to replace it promptly. To save power, the ammeter automatically shuts off after 15 minutes of inactivity.

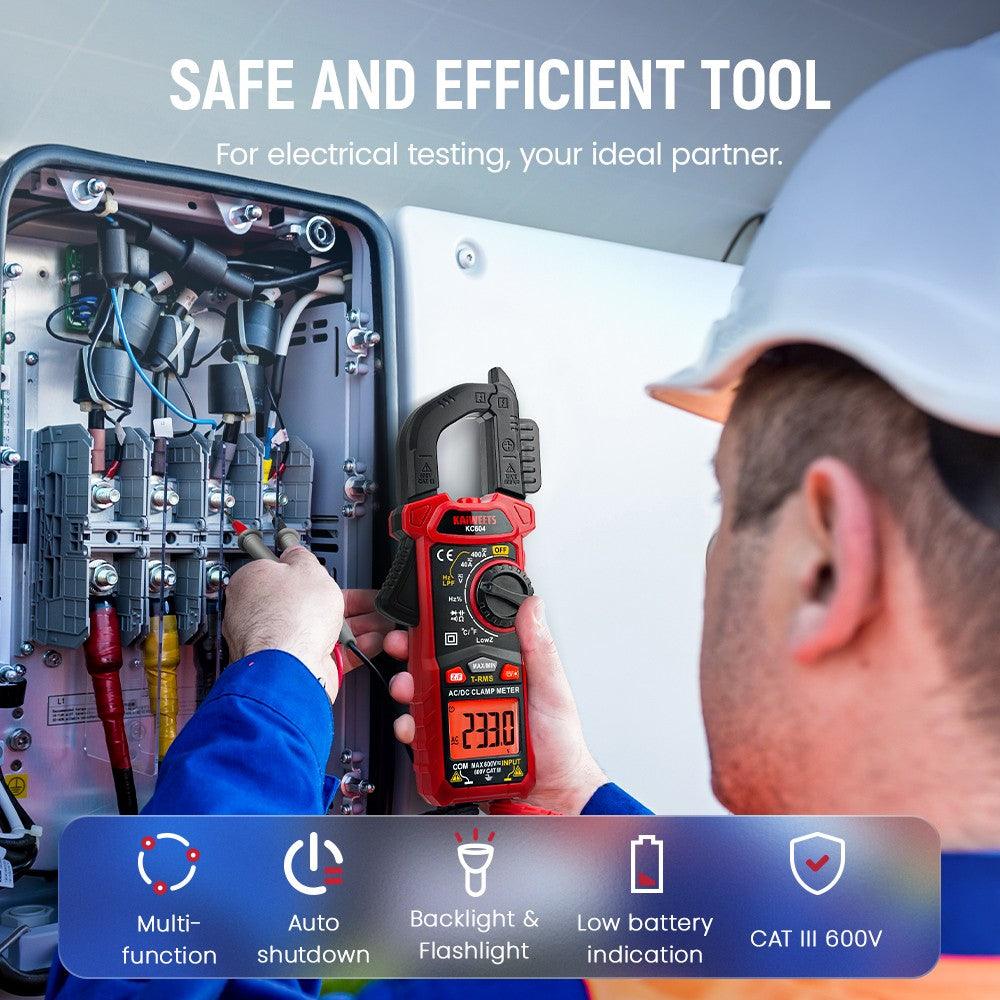

SAFETY: Passed IEC61010-1 and CAT III 600V certification. The screen turns orange to warn when the voltage >80V, the current >1A.
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 400mV/4V/40V/400V/600V | ±(0.5%+5) |
| 4V/40V/400V/600V | ±(1.0%+5) | |
| DC Current | 40A/400A | ±(2.5%+5) |
| AC Current | 40A/400A | ±(2.5%+5) |
| Resistance | 400Ω/4kΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(1.0%+5) |
| Capacitance | 4nF/40nF/400nF/4μF/40μF/400μF/4mF | ±(4.0%+5) |

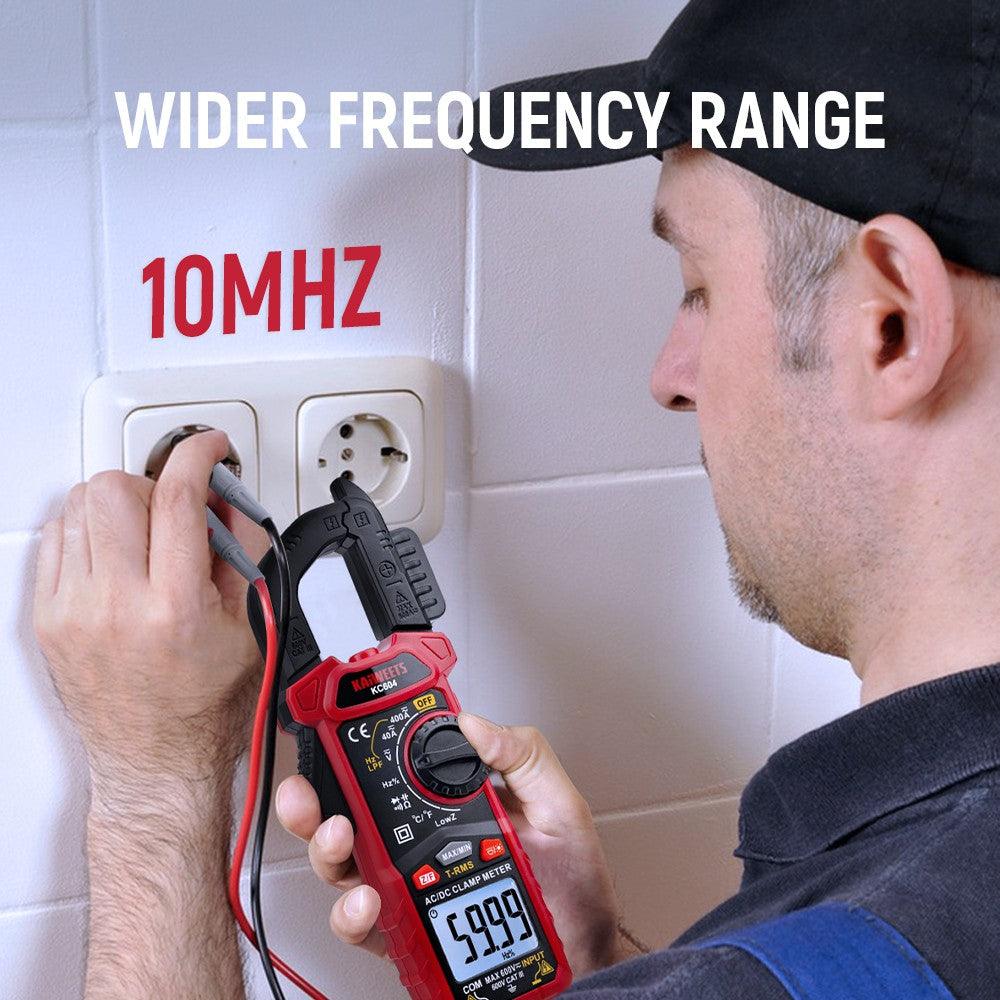

| Frequency | 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz | ±(1.0%+3) |
| Duty | 1%~99% | ±(3.0%+3) |

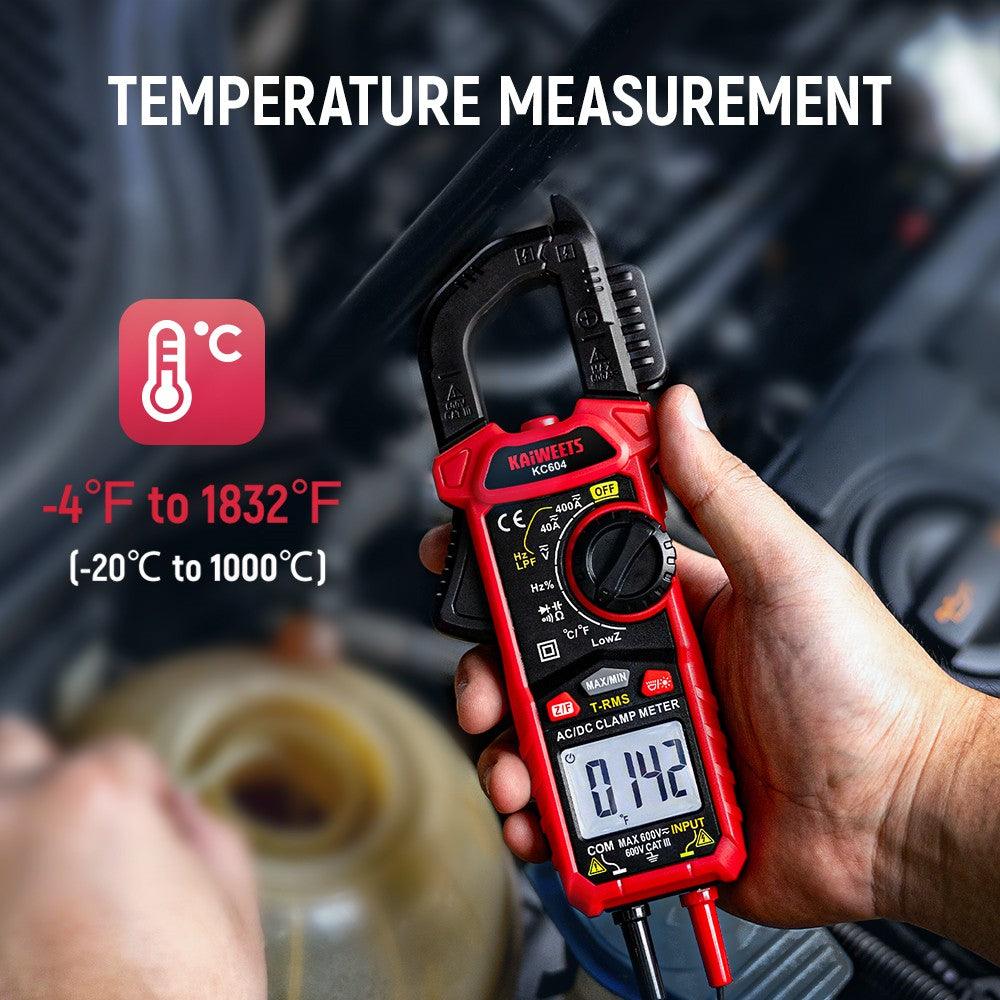

| Temperature | -20°C-1000°C | ±(1.0%+2) |
| -40°F~1832°F | ±(1.0%+2) | |
| Counts | 4000 | |

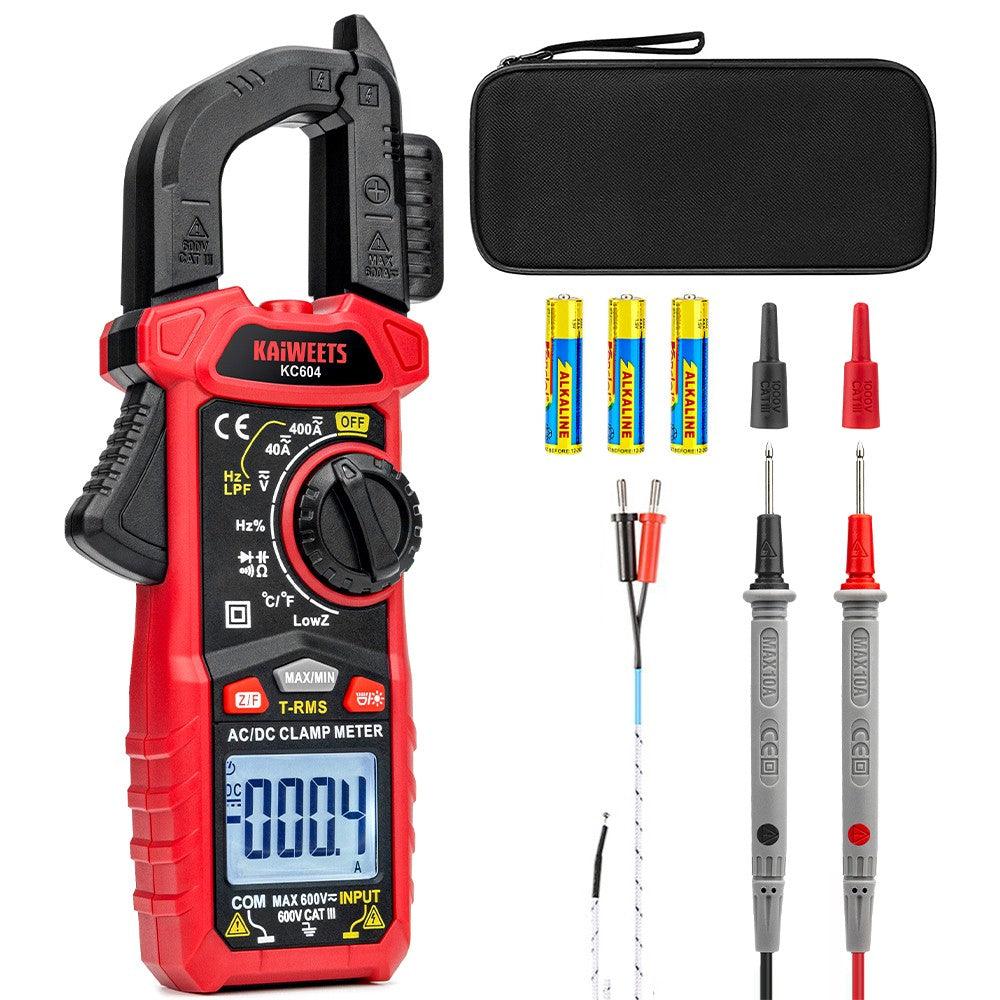

1 x KC604 Clamp Meter
2 x Test Leads
1 x Thermocouples
3 x AAA batteries
1 x User Manual
1 x Durable EVA Bag
