KAIWEETS HT208F Inrush Digital Clamp Meter
Prévention de la fraude : votre paiement est sûr et sécurisé.
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.
True-RMS Clamp Meter: This multimeter can accurately measure 1000 Amp AC/DC Current, 1000V AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature. Easy to use for labs factories and households.
Inrush Current Meter: Knowing the value of inrush current can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. The measuring time of the inrush current is about 100ms. When the current is greater than 10A, the Inrush function works well. The inrush function is only available in AC current mode.
NCV Detection & Flashlight/Backlight: Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient flashlight illuminates a dimly lit area; upgraded screen with a backlight helps reading in direct sunlight easier and clearer.
Advanced Functions: The Clamp Meter has Variable Frequency Drive Filtering (VFD) and low Input Impedance (LoZ) modes, which can provide higher accuracy readings.
Safety Service: Safety standard IEC 61010-1, CAT IV 600V, CAT III 1000V. Double insulation. Use high-quality material, to prevent electric shock harm. 36-Month product service provided. 7/24 Customer Service.
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+3) |
| AC Voltage | 600mV/6V/60V/600V/750V | ±(0.8%+3) |
| DC Current | 60A/600A/1000A | ±(2.5%+5) |
| AC Current | 60A/600A/1000A | ±(2.5%+5) |
| Resistance | 600Ω/6kΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(0.8%+3) |
| Capacitance | 10nF/100nF/1μF/10uF/100uF/1mF/10mF/100mF | ±(3.0%+3) |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+5) |
| Duty | 1%~99% | ±(1.0%+2) |
| Temperature | -40°C-1000°C | ±(1.0%+2) |
| -40°F~1832°F | ±(1.0%+2) | |
| Counts | 6000 | |

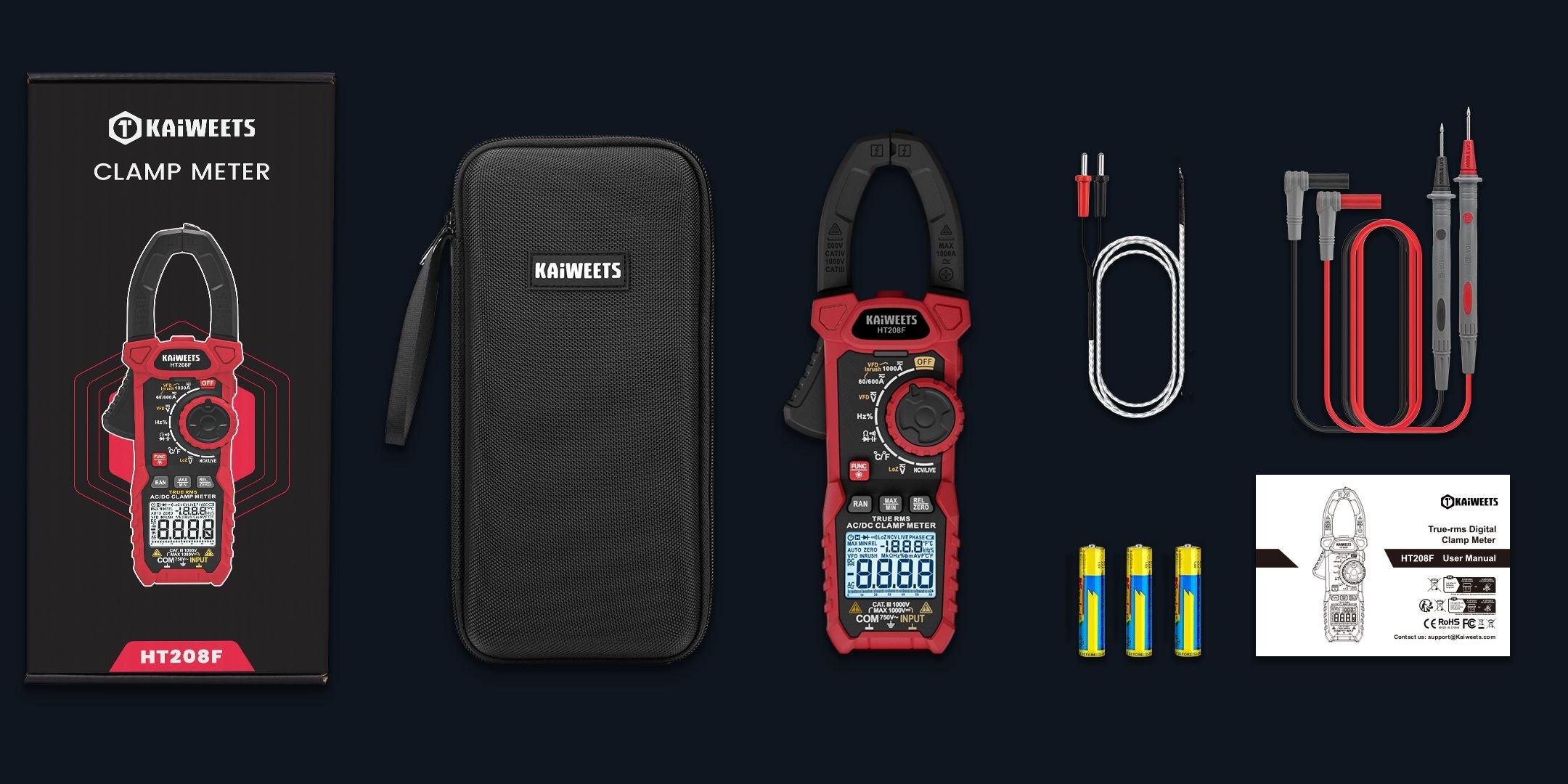

1 x HT208F Digital Clamp Meter
2 x Test Leads
1 x Thermocouples
1 x User Manual
3 x AAA Battery
1 x Durable EVA Bag
Customer Reviews
Very accurate for what I use it for.
I own both the HT208D and the HT208F. Both are a great value with a great many useful functions. I originally bought the D model because I wanted to measure the peak inrush current on our RV AC when I was debugging what turned out to be an on board generator problem. Even though I have a lot of good meters at home, none had inrush capability. The D performed very admirably, but as mentioned by many others, the display can be difficult to see in bright sunlight. Still, I liked the meter so much that I wanted a second one. That's where the F model (HT208F) comes in: It's not immediately apparent, but the F is identical to the D except that it has a standard (backlit) LCD display that is visible in bright sunlight. So if this is a concern for you, get the F model. It's a quality meter with features for most everyone.
Works exactly like a more expensive meter, with even more features. I'd love it even more if I could stop leaving them in customers houses.
I needed a clamp-on ammeter to measure inrush current on my 5T AC compressor without breaking the bank. My primary use was to verify the manufacture claims on a Soft Starter locked rotor current reduction an most clamp-on meters do NOT have this function. The reading from the HT208D is within 0.1 amp from the value shown on my Soft Starter app so very satisfied. This is a task specific ammeter however it does have all of the features needed for electrical unit measurement including AC/DC voltage.
Took a minute to figure how to use it then it was easy , worked good , I'm pleased.
