KAIWEETS ST100 Voltage Tester
* 1
Fraud Prevention: Your Payment is Safe & Secure.
Multi-parameter Measurement: ST100 voltage test pen provides a full range of electrical measurements: AC&DC voltage/resistance/continuity/frequency/capacitance/live/diode/phase sequence.
Non-Contact Voltage Tester: Voltage can be detected by the NCV tester. Measuring voltage without touching wires largely avoids electric shock.

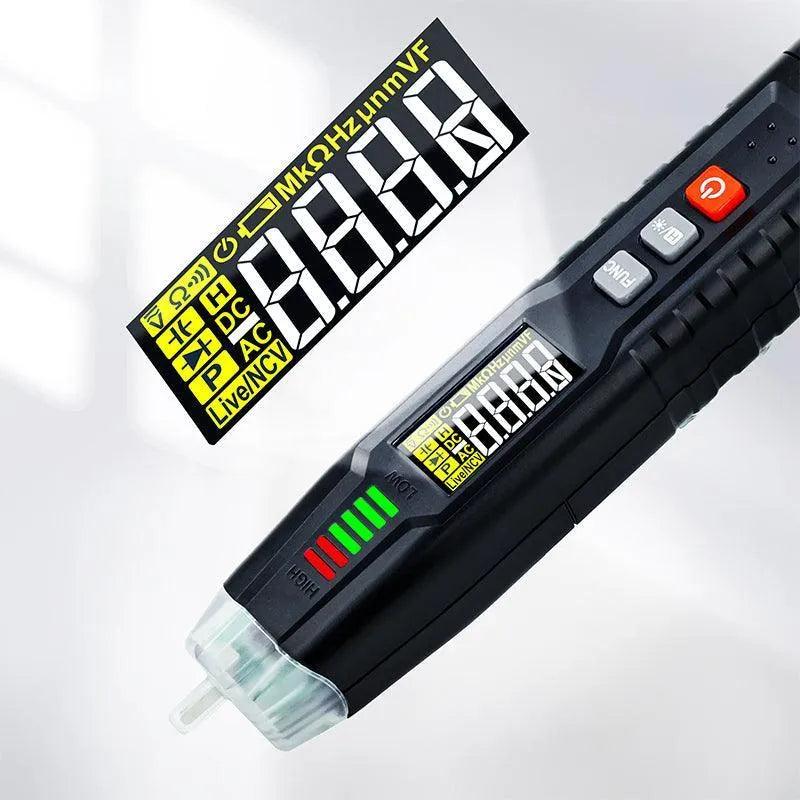

Buzzer and Indicator Bar: When voltage is detected, the buzzer and indicator bar are activated. The frequency of the warning tone and the color of the indicator light depends on the voltage level.

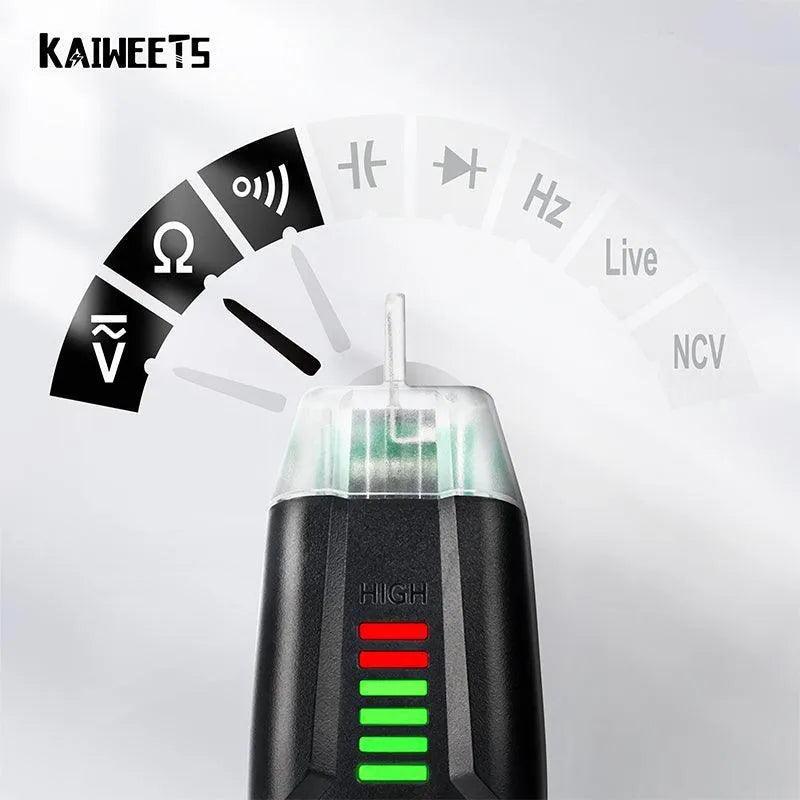

Smart Auto Mode: Running in Auto Mode, the electrical checker automatically identifies the voltage, resistance, and continuity being measured and displays the reading on the display.
Related Blog: How to Use Voltage Tester Pen
- SPECIFICATION
- Item Weight
- 0.2KG
- Product Dimensions
- 1.1 x 0.9 x 2.8 inches
- Batteries
- 2 AAA batteries required (included)
- External Testing Certification
- IEC61010-1 CAT.III 600V
- Display Type
- LCD
- Specific Uses For Product Function&Range&Accuracy
-
▲DC voltage test 0~600V ±(0.5%reading+3)
▲AC voltage test 0~600V ±(0.8%reading+3)
▲Resistance test 0~4MΩ ±(1.0%reading+5) 4MΩ~40MΩ ±(1.5%reading+10)

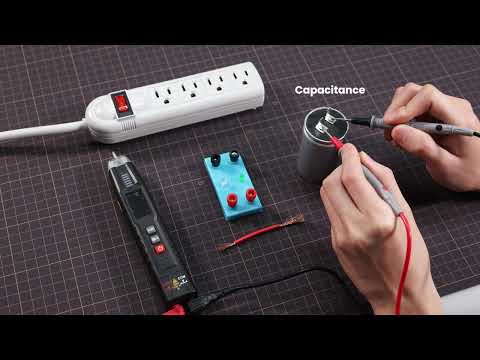

▲Capacitance test 0~4mF ±(3.0%reading+5)
▲Frequency test 0~4MHz ±(1.0%reading+3)
▲Phase Sequence Test
▲NCV Test
▲Live Wire Test
▲Diode Test
▲Continue Test

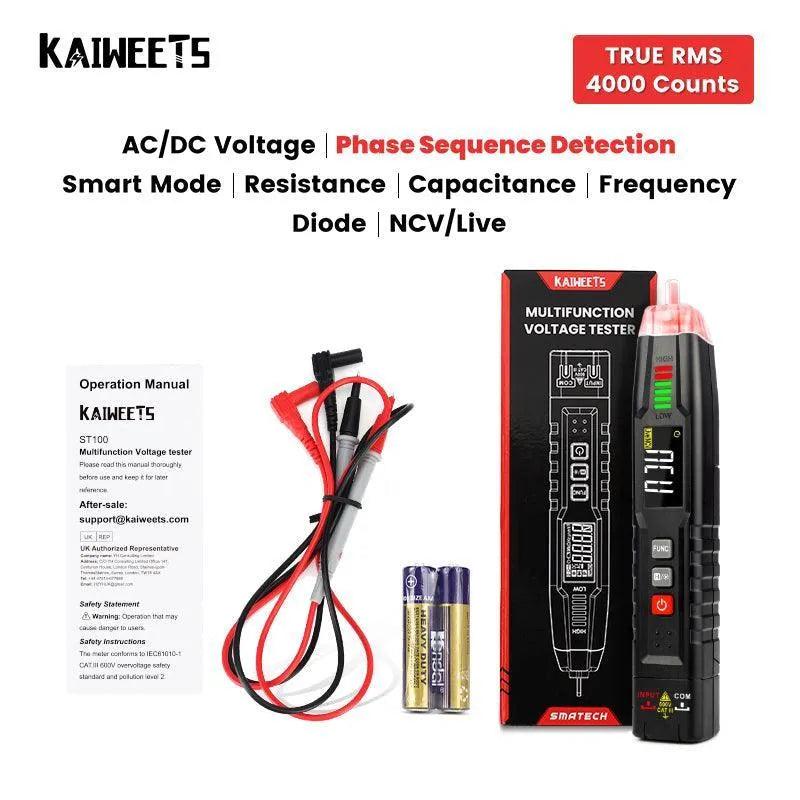

1 x KAIWEETS ST100 Voltage Tester
2 x Test Leads
2 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Packing Box
.

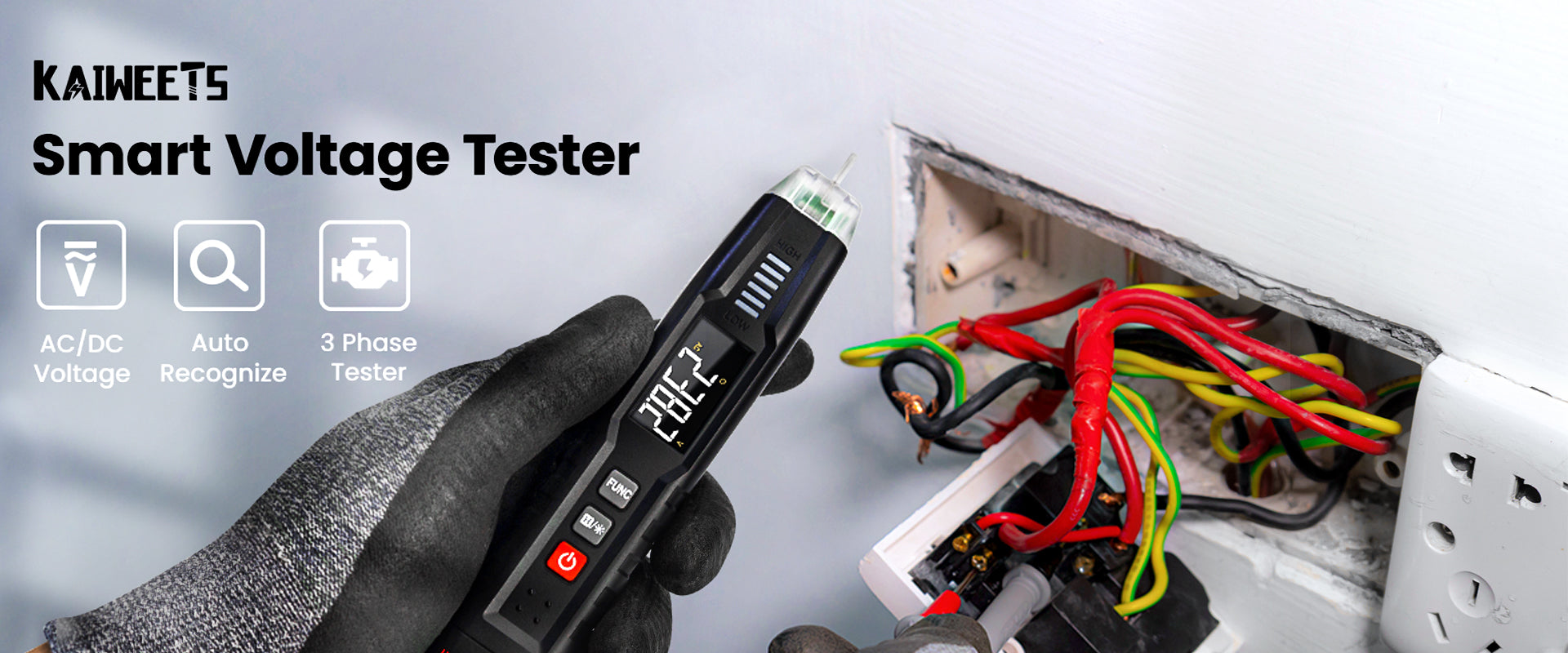

Multi-function Voltage Tester
The functions of ST100 are more comprehensive, ST100 can measure DC/AC voltage, Resistance, Capacitance, Frequency, Phase Sequence, Live Wire, Diode and Continue.
NCV Test
1)Press the power key to power on into NCV measurement mode by default.
2)Gradually close the NCV sensing area to the measured conductor.
When the weak electric field signal is detected, it will display '---L'; the buzzer will sound slowly and the green light on.
When the strong electric field signal is detected, it will display '---H'; the buzzer will sound quickly and the red light on.
NCV Test
1)Press the power key to power on into NCV measurement mode by default.
2)Gradually close the NCV sensing area to the measured conductor.
When the weak electric field signal is detected, it will display '---L'; the buzzer will sound slowly and the green light on.
When the strong electric field signal is detected, it will display '---H'; the buzzer will sound quickly and the red light on.

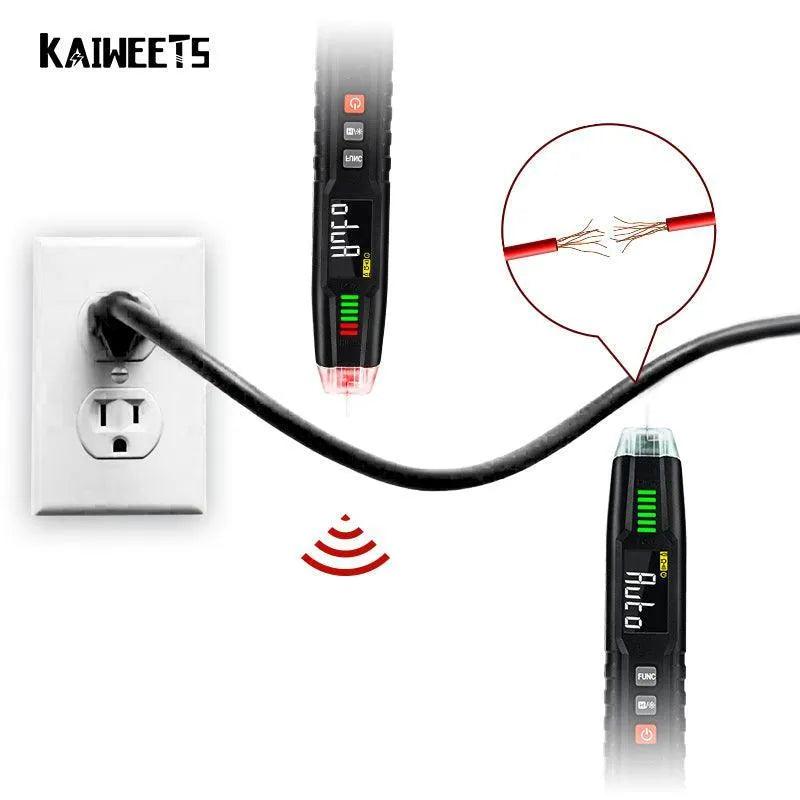

Breaking Point Test
Non-contact measurement, more secure.
Live Wire Test
The buzzer will give a quick warning when the end of the tester is close to the object being measured.
What Do You Get?
1 x KAIWEETS ST100 Voltage Tester
2 x Test Leads
2 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Packing Box
