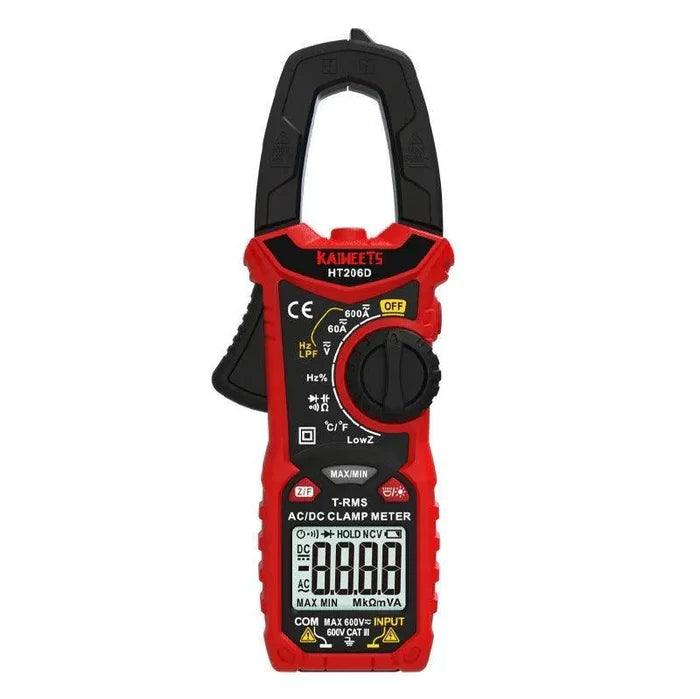

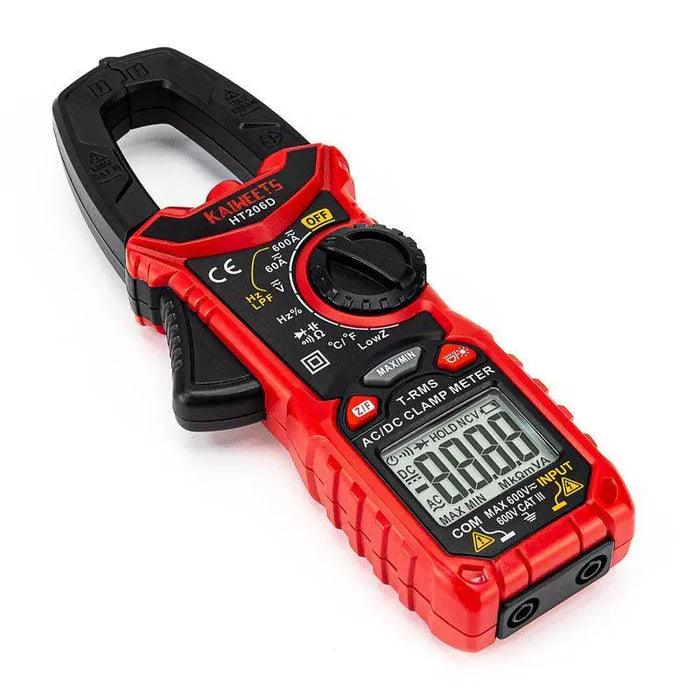

KAIWEETS HT206D Digital Clamp Meter
Exclusive 15% Off Code: KW15
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.
True-RMS clamp meter: This clamp meter can accurately measure AC/DC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, and Capacitance and also provides Diode, Continuity and Temperature tests. True RMS for accurate measurements on non-linear loads. Easy to use for labs factories and households.
LowZ & LPF: Low input impedance helps prevent false readings due to ghost voltage. Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals when measuring motors and transformer. To measure the current you need to clamp the meter around one of the wires and not the whole power cord.
NCV Detection Function: Non-contact voltage detection effectively check electrical status through measuring EM field intensity without touching any wires; The NCV button lies on the right side. Simply place your thumb on it and push.
Multi-function: Two-color backlit LCD Display - When the voltage > 80V, the current > 3A, the LCD backlit screen turns red to warn you of high voltage/ LED Flashlight / Temperature Measurement for liquids and air conditioning ports included K-Type Thermocouple / Low Battery Indication / Auto power off after 15 minutes inactivity.
Safety Service: Safety standard IEC 61010-1, CAT III 600V. Double insulation. 36 Months product service provided. 7/24 Customer Service.
Specifications | Range | Accuracy |
---|---|---|
DC Voltage | 600mV/6V/60V/600V | ±(0.5%+5) |
AC Voltage | 6V/60V/600V | ±(0.8%+5) |
DC Current | 60A/600A | ±(2.5%+5) |
AC Current | 60A/600A | ±(2.5%+5) |
Resistance | 600Ω/6kΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(1.0%+5) |
Capacitance | 4nF/40nF/400nF/4μF/40μF/400μF/4mF | ±(4.0%+5) |
Frequency | 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz | ±(1.0%+3) |
Duty | 1%~99% | ±(3.0%+3) |
Temperature | -40°C-1000°C | ±(1.0%+2) |
-40°F~1832°F | ±(1.0%+2) | |
Counts | 6000 |
1 x HT206D Digital Clamp Meter
2 x Test Leads
1 x User Manual
1 x Thermocouple
2 x AAA Batteries
1 x Durable EVA Bag
- USER MANUAL
- Download
- PATENT CERTIFICATE
- →     LD01-Test Report
- →     LD01-Certificate
Kaiweets
Multi-Function

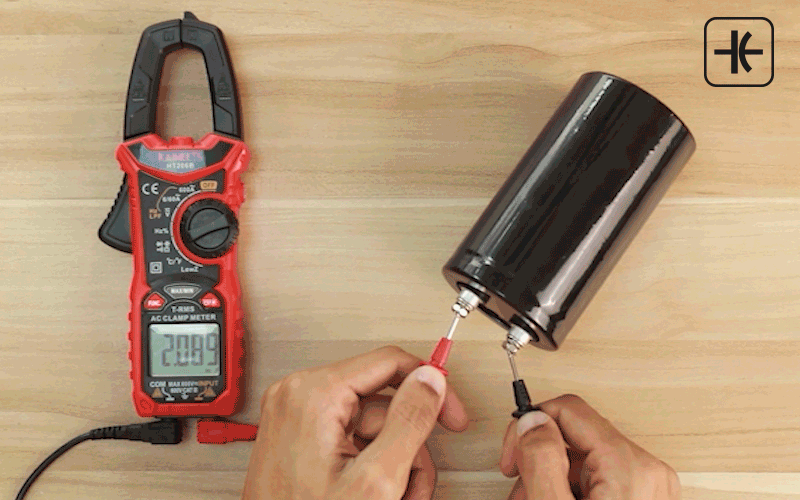

Accurately measure resistance, capacitance, diode, and continuity. Easy to use in laboratory factories and homes.

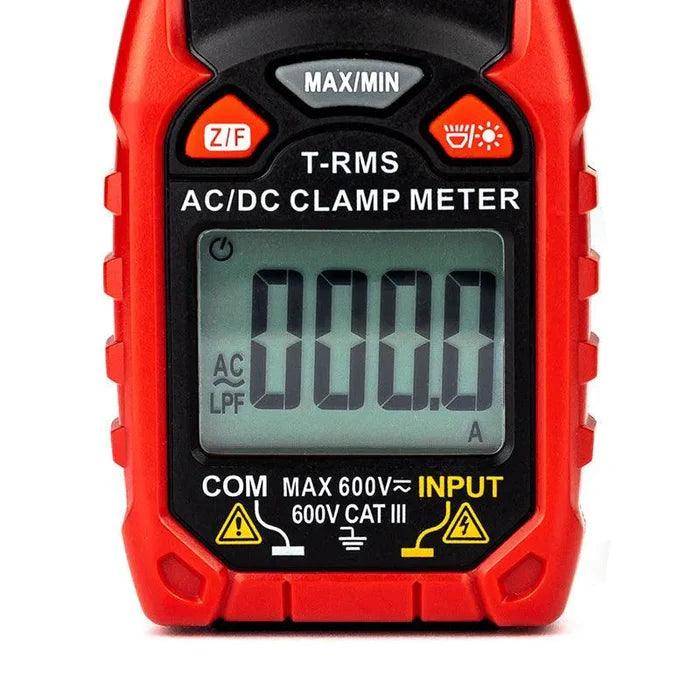

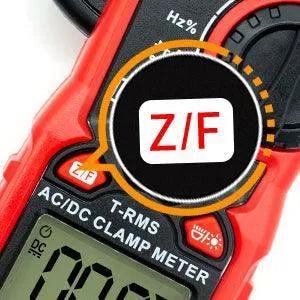

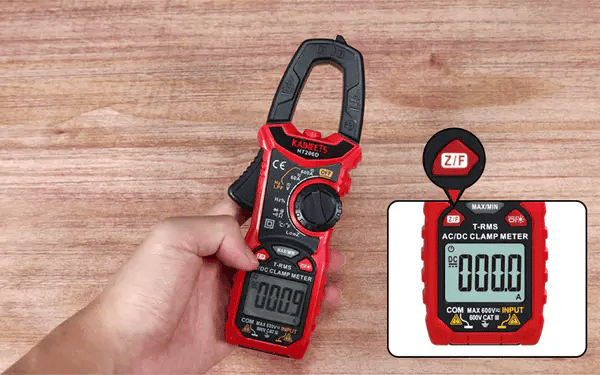

Z/F Button Measurement
Press the "Z/F" button to switch the respective secondary function between the different measurements, such as between AC and DC.
If current> 3A, the orange display lights up.
The measuring range of AC current is 60A/600A. Accuracy: ±(2.5%+5).

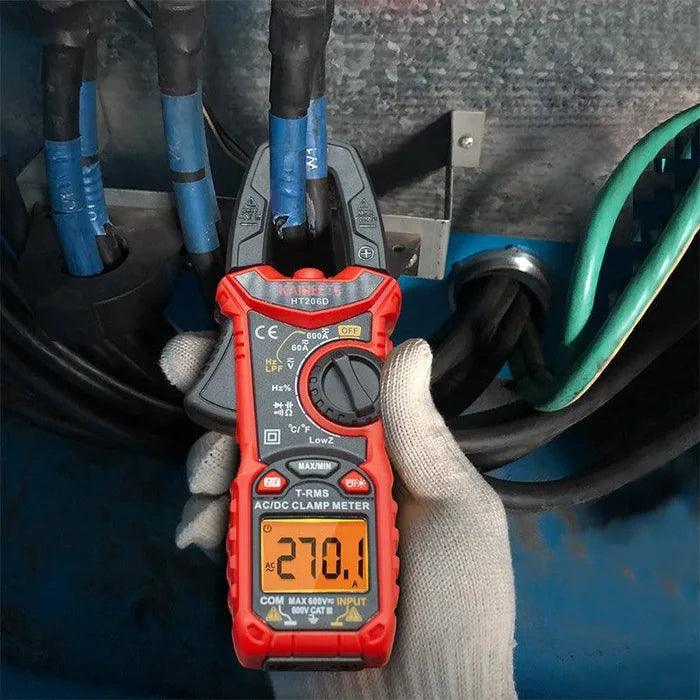

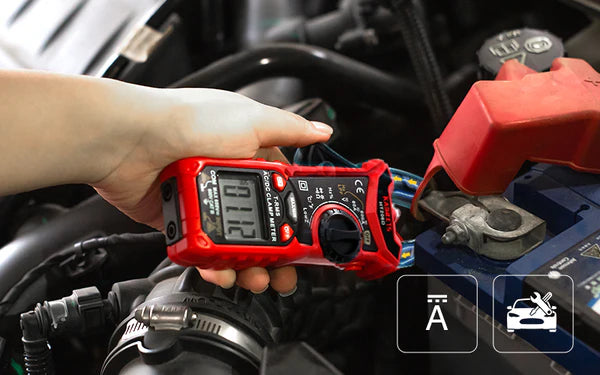

In the real scene
To measure the current, you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying current and a ground wire. The current in two wires always flows in opposite directions, so the magnetic fields from the two wires cancel each other; therefore, the meter reads 0 A.
Grasp the individual current conductor to be measured and close the current clamp again. The measured conductor must be placed in the center of the clamp; otherwise, additional errors will occur.

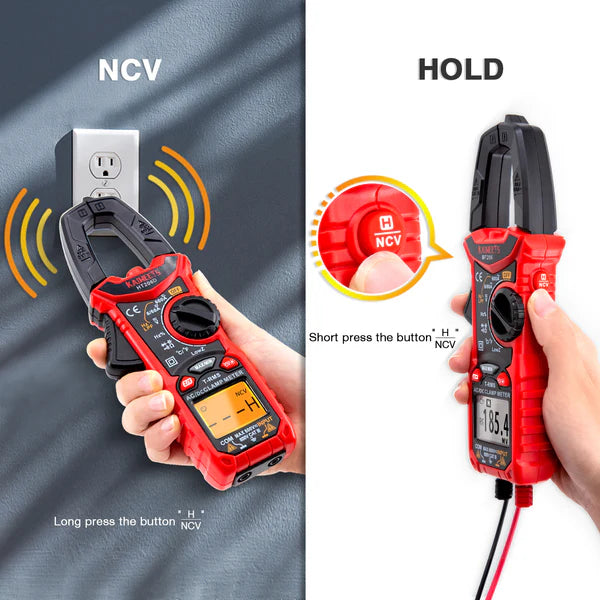

NCV Detection Function
Non-contact voltage detection effectively checks the electrical status by measuring EM field intensity without touching any wires; The NCV button lies on the right side. Simply place your thumb on it and push.

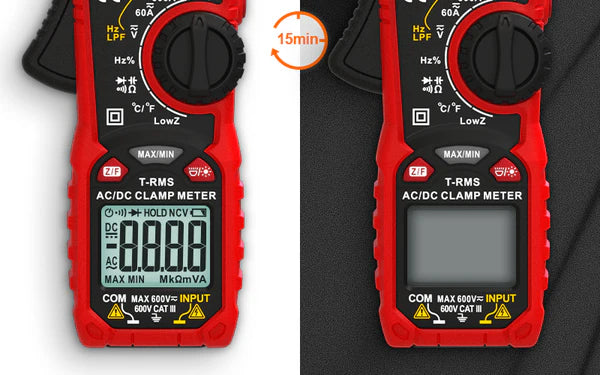

Automatic Shutdown
If there is no operation in 15 minutes, the meter will beep 3 times, indicating Auto Power Off; with no further operation in 30 seconds, the meter beeps again and automatically shuts down.

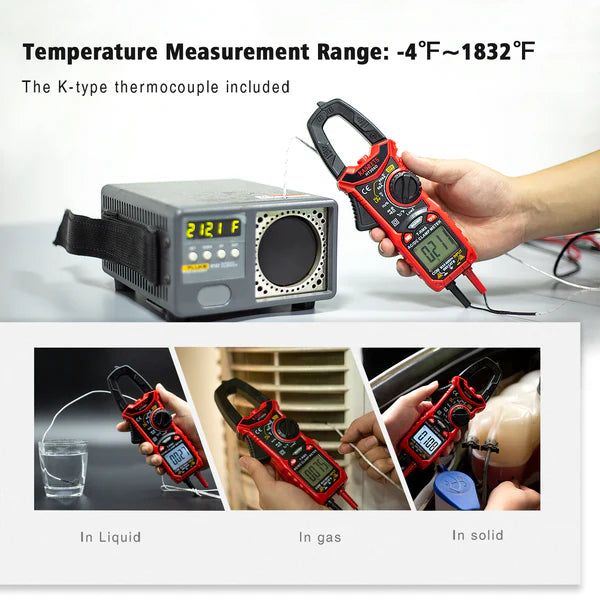

Temperature Measurement
Range: -4°F~1832°F
The K-type thermocouple included

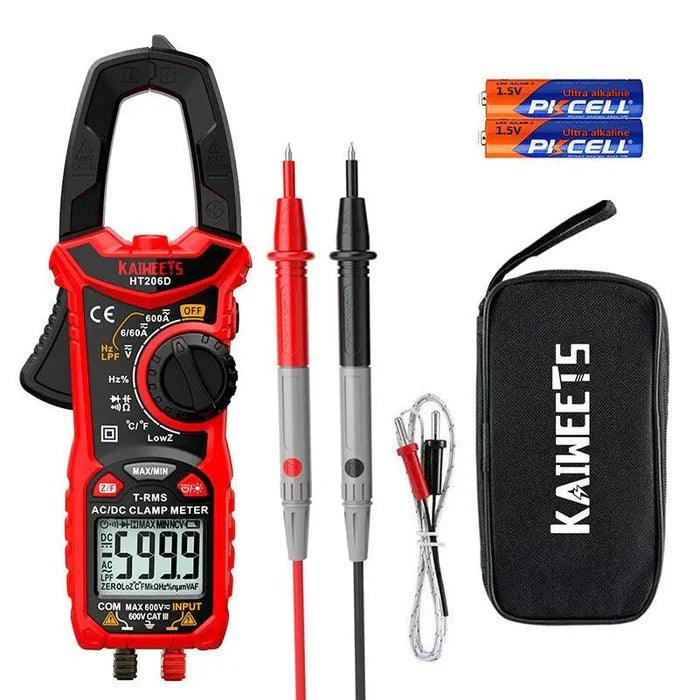

What Do You Get?
1 x KAIWEETS Digital Clamp Meter
2 x Test Leads
1 x K-Type Thermocouple
2 x AAA Batteries (Assembly Required)
1 x User Manual
1 x Durable EVA Bag
1 x Packing Box
