KAIWEETS KM401 Digital Multimeter
Fraud Prevention: Your Payment is Safe & Secure.
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.

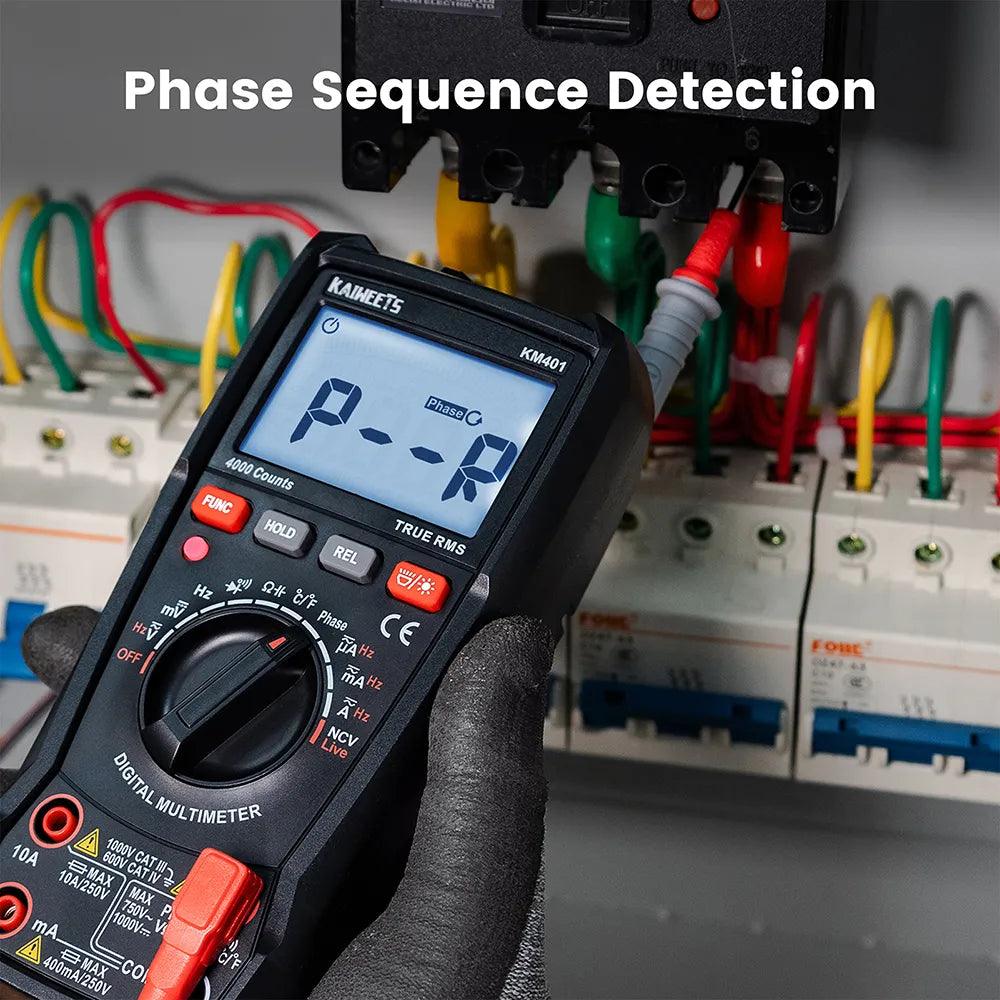

Phase Sequence Detection: The multimeter can perform phase sequence detection, which is fast, simple, and accurate. A feature not available in others.

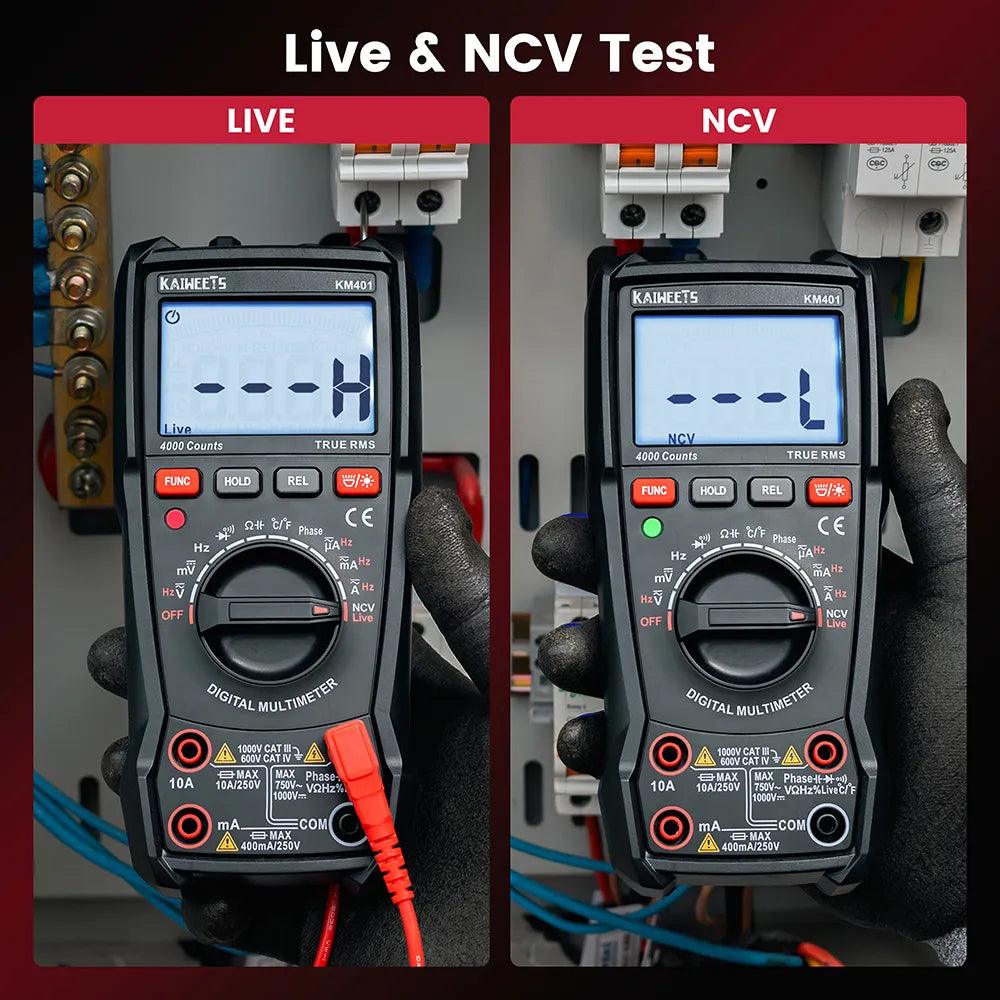

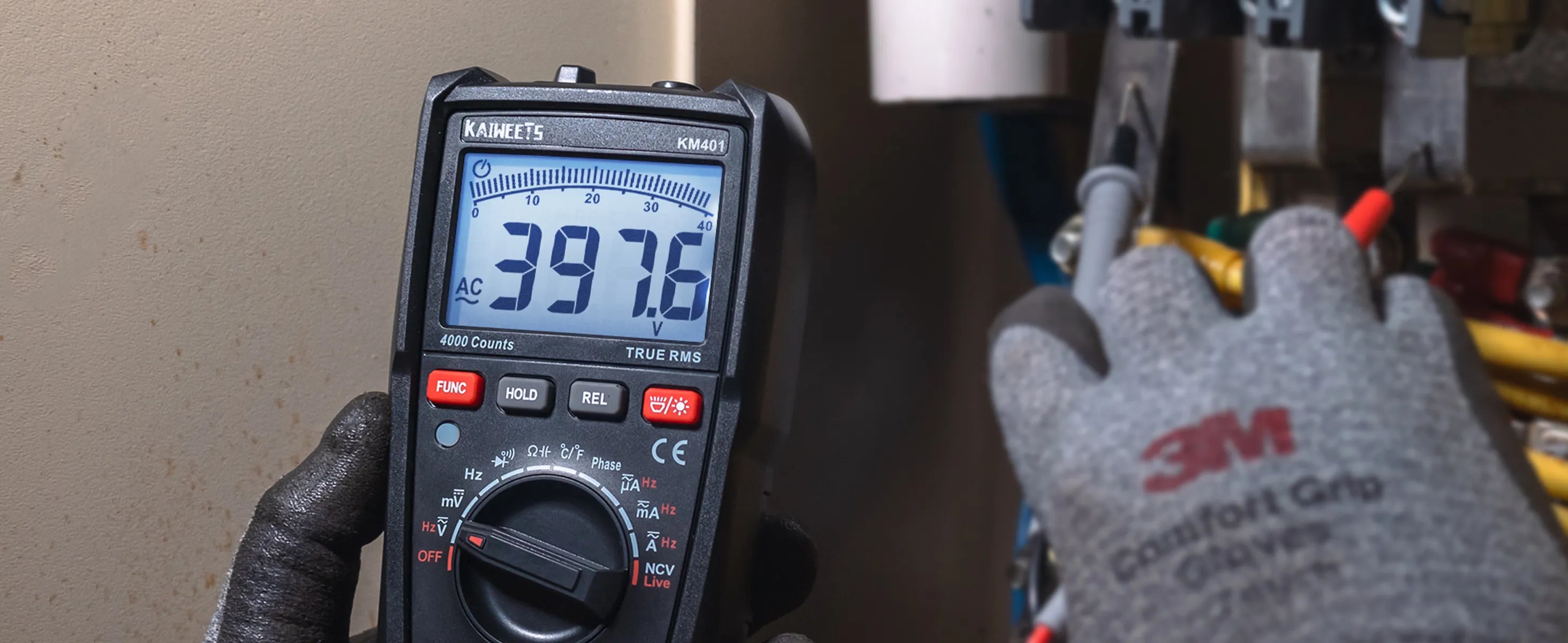

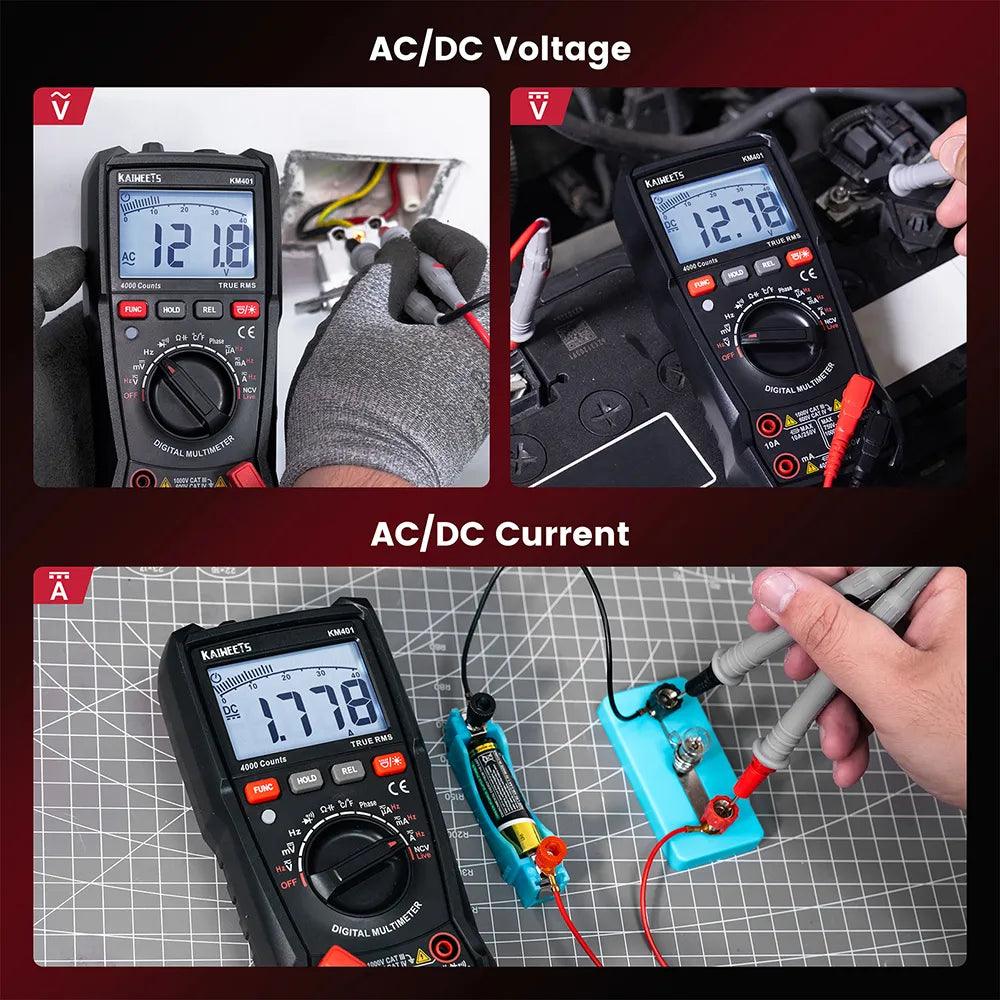

Versatile Digital Multimeter: Accurately measures AC/DC Voltage current, Resistance, Continuity, Diode resistance, capacitance, continuity, diode, NCV, live wire, temperature, phase sequence, and relative value measurement. This multimeter tester is suitable for electrician tests, household use, automotive, and industrial electrical.

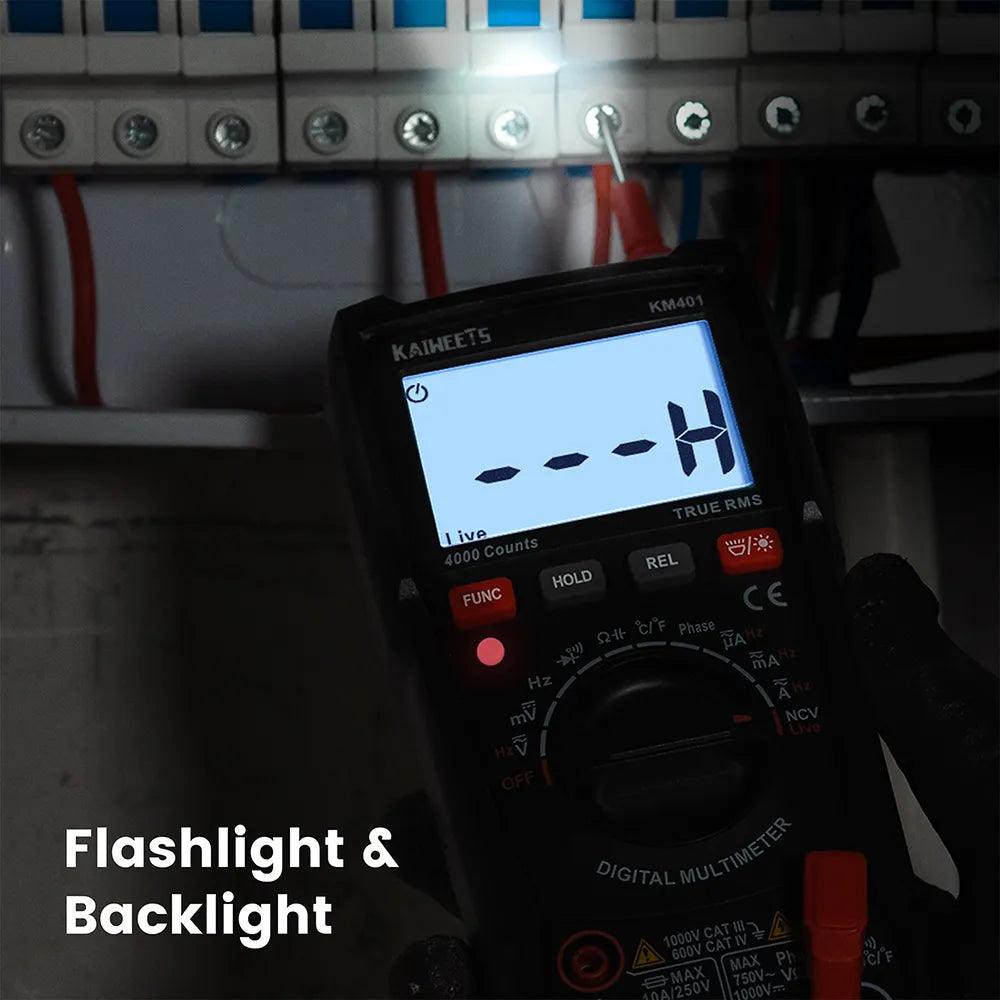

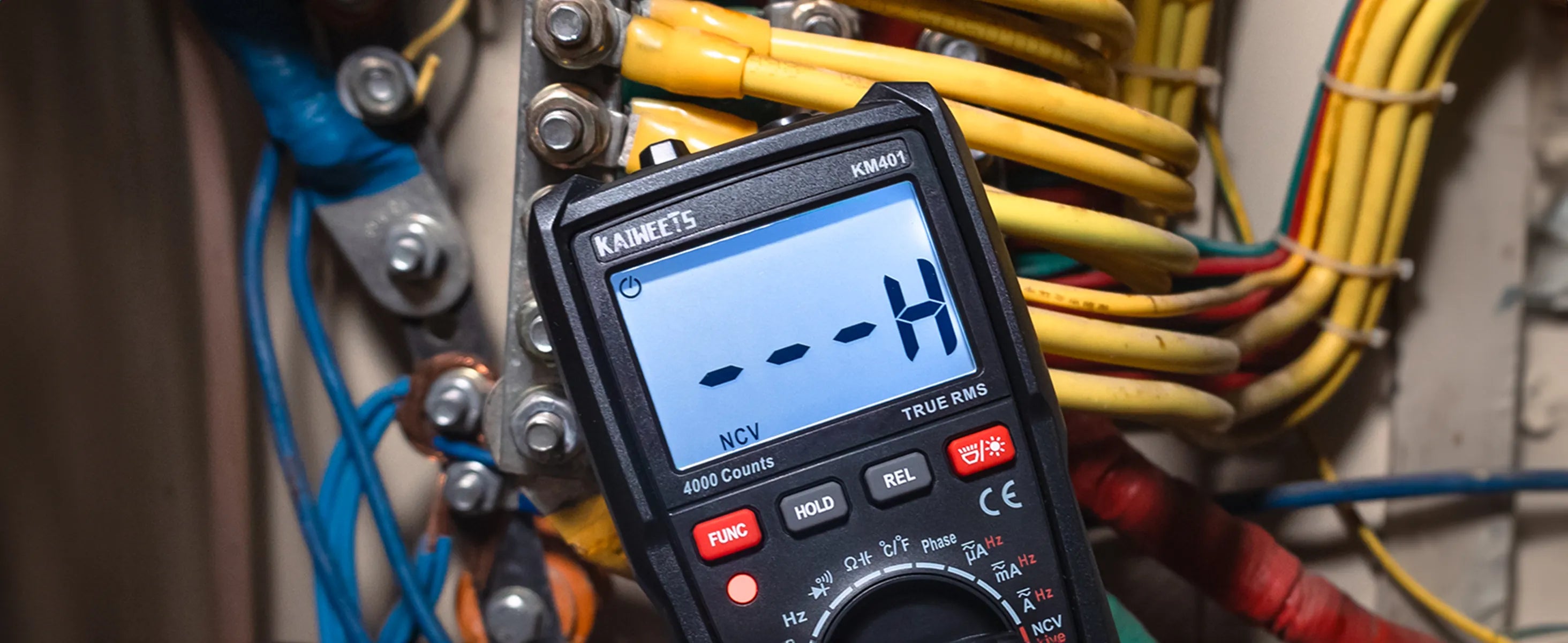

Ease of Use: Support data hold & cancel data hold function, Non-Contact Voltmeter makes troubleshooting the line much safer and easier. Backlight and flashlight functions help you test clearly and quickly in a dim place. These convenience features make the more than enough for daily use by amateurs, car owners, and homeowners. Easy to use, enjoy endless DIY fun!

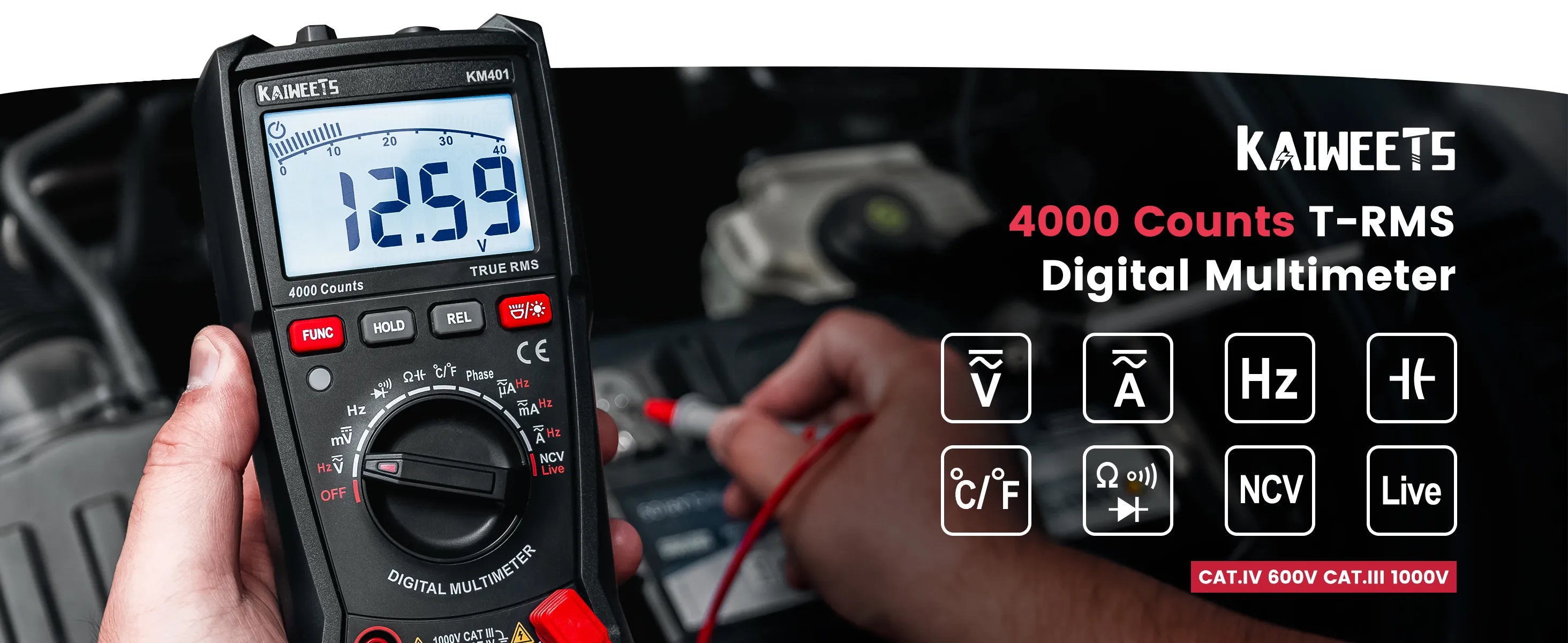

Ensures Safety: IEC-61010-1 CAT. IV600V、CAT. III1000V certified; This voltage meter comes with anti-burn and protects from overloading. Over-load indication "OL" will be displayed; Low battery indication will be displayed when battery power is low.
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 400.0mv/4.000/40.00/400.0/1000V | ±(0.5%+3) |
| AC Voltage | 4.000/40.00/400.0/750V | ±(1.0%+3) |
| DC Current | 400.0uA/4000uA/40.00mA/400.0mA/10A | ±(1.2%+3) |
| AC Current | 400.0uA/4000UA/40.00mA/400.0mA/10A | ±(1.5%+3) |
| Resistance | 400.0Ω/4.000KΩ/40.00KΩ/400.0KΩ/4.000MΩ/40.00MΩ | ±(1.0%+5) |
| Capacitance | 4.000nF/40.00nF/400.0nF/4.000UF/40.00uF400.0uF/4.000mF/40.00mF | ±(4.0%+5) |
| Frequency | 4.000HZ/40.00Hz/400.0Hz/4.000KHz/40.00KHz/400.0KHz/10MHz | ±(1.0%+5) |

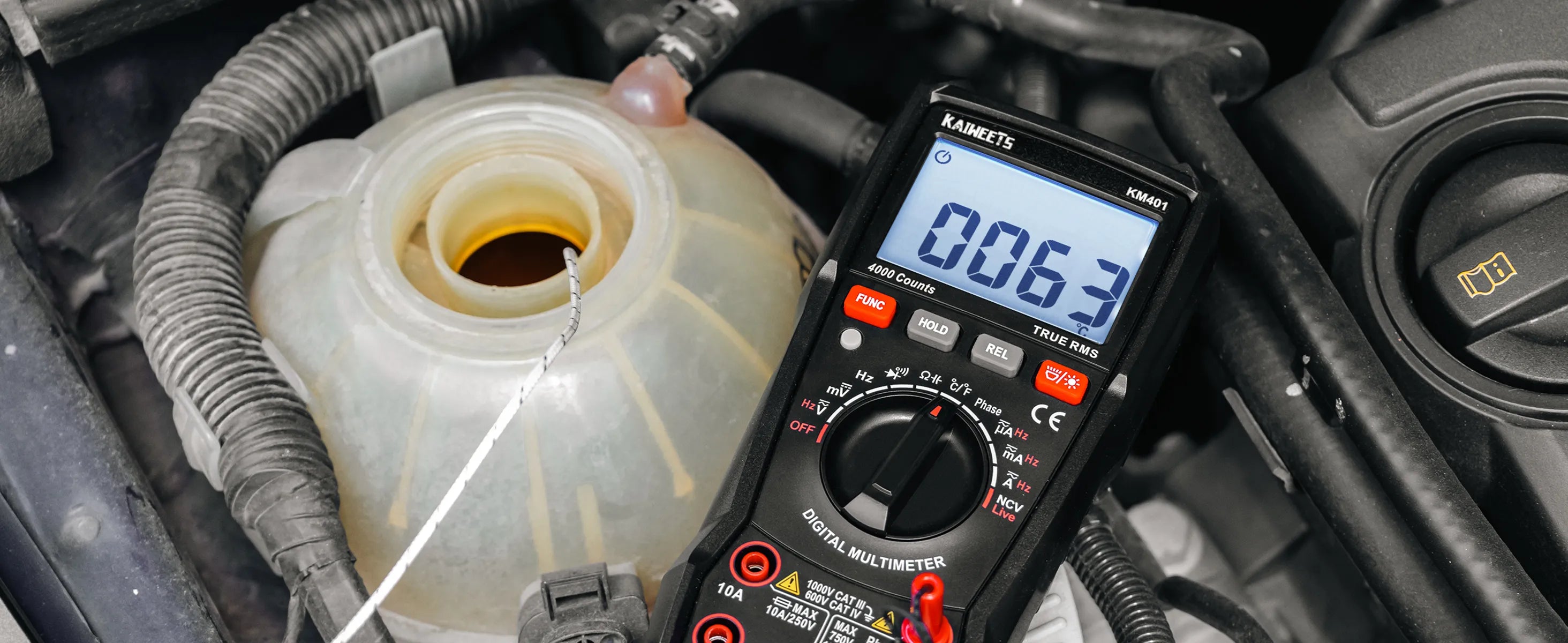

| Temperature | -20°C~1000°C(-4°F~1832°F) | ±(1.0%+3) |
| Counts | 4000 Counts | |

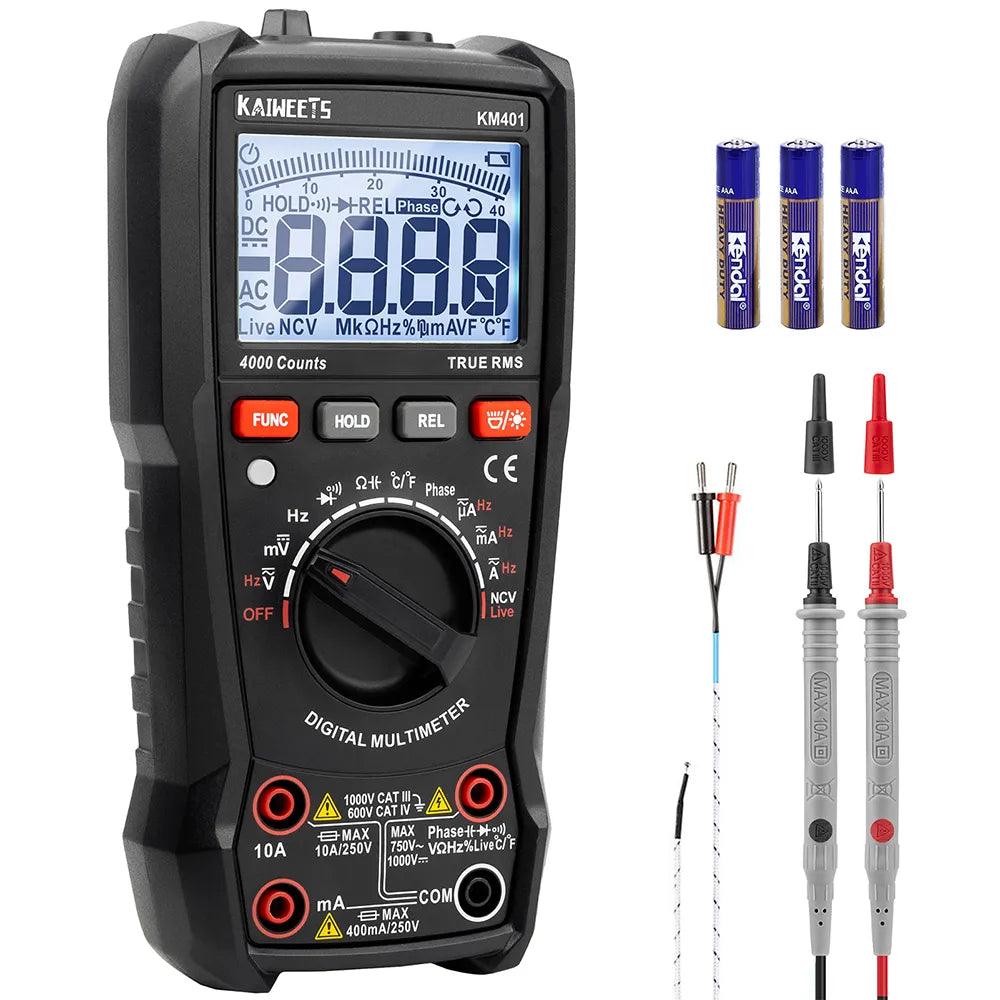

1x KAIWEETS Multimeter,
1x Test Leads,
3 x 1.V AAA Battery,
1x User Manual
Customer Reviews

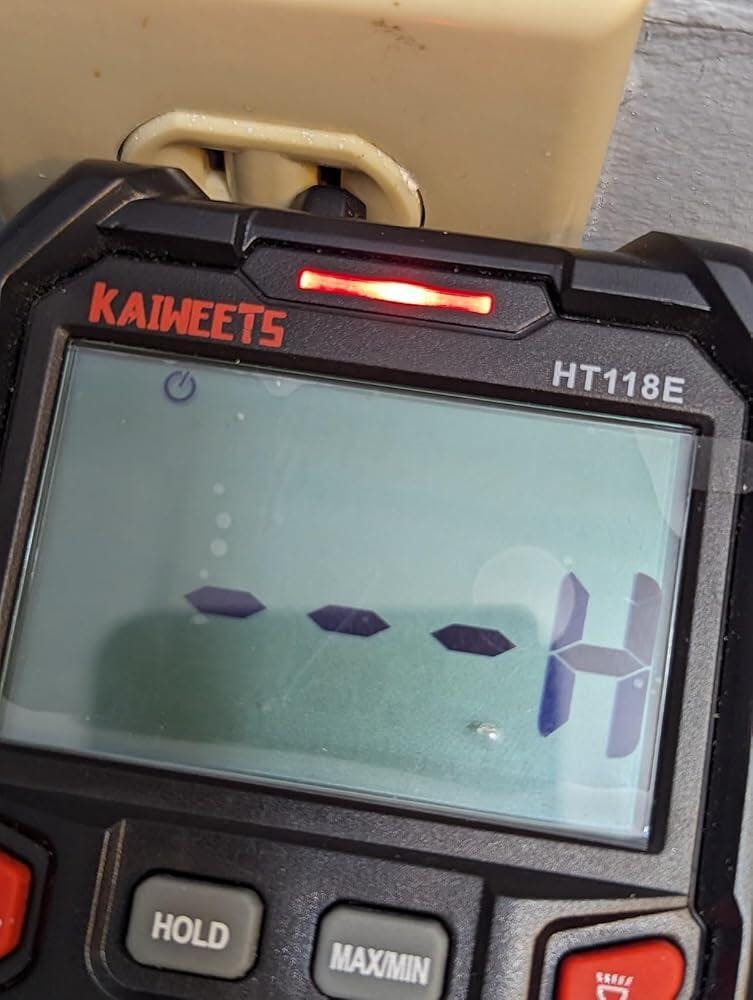

Upgraded a 20 year old voltmeter to this. Simple features like a stand, easy and quick continuity check, backlight, flashlight, probe grip on case, and large letters make it a pleasure to use. Auto-shutdown beep provides a clear reminder when it has been idle and saves batteries. Even appears to be able to identify the hot side of a 120VAC outlet (mostly - it doesn't always get it right, so verify!) Awesome.
I tested this against a fluke 77 and the readings are identical. I use this for hvac service and testing capacitors. All cap readings are very accurate.
Great quality, works well.
I wanted to have dvom at home so I did not have to bring my high dollar meter home when I need it. So this was at a reasonable price and I did not have to leave the house. Thanks.
works good for what it is. fairly accurate but accurate enough for what i need it for. great value, for the features the meter comes with. I think the plastic housing should have a rubber coated sleeve or something to protect from drops.
