How to Test a Ground Wire On a Car

The ground wire in a car performs the electrical circuit and allows current to flow. A faulty ground wire can cause a variety of electrical issues, so it's critical to inspect it on a regular basis to ensure it's in good working order. There are several methods for testing the ground wire in a car. Most people use a multimeter, but an ohmmeter or a test light can also be used.

What You'll Need:

• Multimeter

When you check a ground wire with a multimeter, the reading should be 0 ohms. If the multimeter shows anything other than 0 ohms, the ground wire has resistance and needs to be replaced.

How to Test a Ground Wire With a Multimeter

1. Select the Ohm setting on the multimeter.
2. Touch one lead of the multimeter to the metal chassis of the car.
3. Touch the other lead of the multimeter to the end of the ground wire that is not attached to anything.
4. If the multimeter reads zero ohms, then the ground wire is good. If the multimeter reads anything other than zero ohms, the ground wire needs to be replaced.

Why Is It Important to Have a Good Ground Wire?

A good ground wire is important because it ensures that all of the electrical components in the car are properly grounded. If there is poor grounding, electrical components can overheat and catch fire. Additionally, poor grounding can cause the car to stall or have other electrical problems.

How to Replace a Ground Wire

If your ground wire is not working properly, you will need to replace it. Replacing a ground wire is a relatively easy task that can be done at home with just a few tools.

1. Disconnect the battery. Before starting any work on the electrical system of the car, always disconnect the battery to avoid electrocution.
2. Remove the old ground wire. Use a wrench to remove the nuts or bolts that are holding the old ground wire in place. Pull the old ground wire out and discard it.
3. Connect the new ground wire Attach the new ground wire in the same location as the old one. Tighten the nuts or bolts that are holding it in place with a wrench.
4. Replace the battery. After installing the new ground wire, reconnect the battery and test the electrical system to ensure that everything is working properly.

Tips for Replacing a Ground Wire

1. Always disconnect the battery before working on the electrical system of the car.
2. Make sure to use the proper size and type of wire when replacing a ground wire.
3. Tighten all nuts and bolts securely to ensure that the new ground wire is properly attached.
4. Before you drive the car, connect the battery and test the electrical system to make sure everything is working.
5. If you are not confident in your ability to replace a ground wire, take the car to a qualified mechanic to have the job done.

How to Test a Car Ground with Multimeter

A multimeter is a device used to measure the voltage, current, and resistance of an electric circuit. It can also be used to determine whether a circuit is open or closed. A multimeter can be used to test the ground wire in your car.

1. Park the car on a flat surface and set the parking brake. Stop everything, including the engine. You can find the battery if you open the hood.

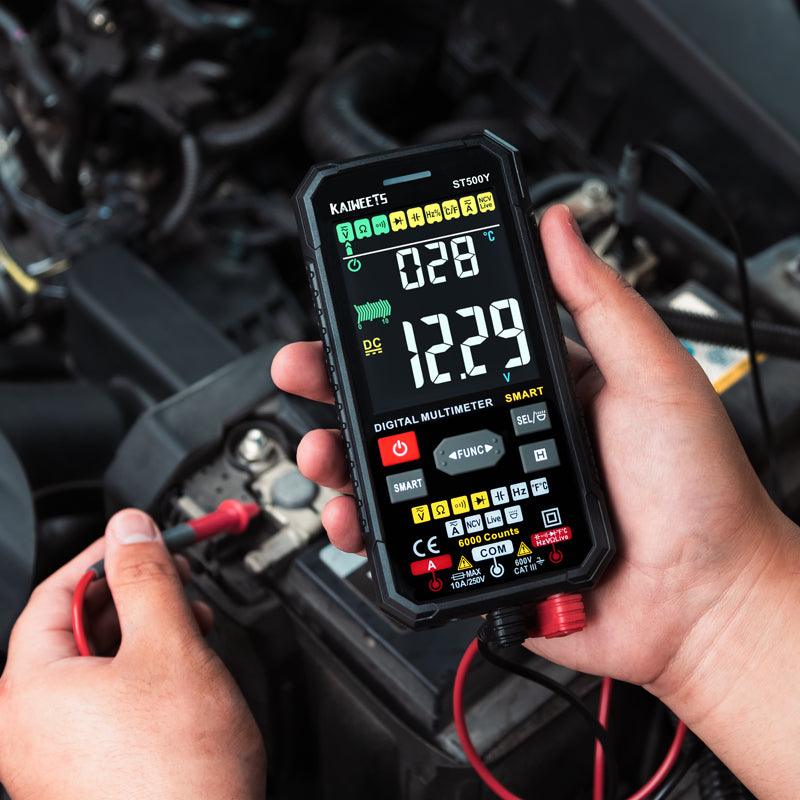

2. Connect one multimeter lead to the negative (-) terminal of the battery and the other to a metal part of the car's chassis, such as a bolt or screw. If the ground wire is in good condition and functioning properly, the reading should be close to zero.
3. If the reading is not close to zero or changes rapidly, the ground wire is likely to be broken. You'll need to consult with a qualified mechanic to figure out what's wrong and how to fix it.

Testing the ground wire is a simple and effective way to diagnose electrical problems in your car. If you suspect that there may be an issue with the ground wire, it is important to have it checked out by a professional as soon as possible.

Frequently Asked Questions:

Can I test a ground wire with a multimeter?

A ground wire can be checked with a multimeter. When you use a multimeter to check a ground wire, you should get a reading of 0 ohms. If the multimeter shows anything other than 0 ohms, the ground wire is damaged and needs to be replaced.

How can I tell if my car has a faulty ground wire?

A faulty ground wire could be the cause of your vehicle's strange behavior recently. Here are some signs that your vehicle has a bad ground wire:

• The engine may stall or run rough.
• The headlights may flicker or dim.
• The electrical system may not work properly.

If any of these things are wrong with your car, you should take it to a mechanic to be checked out and fixed. If you don't fix a broken ground wire, it could create major issues down the road.

How do I figure out which wire in my car is faulty?

If your car won't start or the electrical system appears to be malfunctioning, it could be a wire problem. You'll need to remove each wire one at a time to figure out which one is the problem.

To identify the problematic wire, you must remove each one individually. First, check all of the fuses in your vehicle. Bad things could happen if one of them goes off. If not, you must inspect each wire individually.

You'll need a multimeter to do this. First, unplug the negative end of the battery. Then, use the multimeter to check if each wire is still connected. If the wire doesn't work, it's because there is no continuity.

 If you still can't figure out which wire is broken, you may need to take your car to a mechanic or an auto electrician. They will be able to figure out what's wrong and help you find the bad wire.

Conclusion:

In a car, the ground wire connects the negative terminal of the battery to the vehicle's frame, completing the electrical circuit. A faulty ground wire can lead to a wide range of electrical problems, so regular inspection is essential.

There are three reliable methods to test a ground wire. The first is a digital multimeter: with the car off, connect one lead to the negative battery terminal and touch the other to various points on the frame. A reading close to zero indicates a healthy ground wire. The second method uses an ohmmeter in the same way — a low resistance reading confirms the wire is good. The third option is a continuity tester: connect one lead to the negative terminal and touch the other to the frame. A beep means the circuit is complete and the ground wire is functioning correctly.

If the ground wire is found to be damaged, replace it promptly using the correct wire size and type. If you are unsure about any step in the process, consult a qualified mechanic to ensure the job is done safely and correctly.
