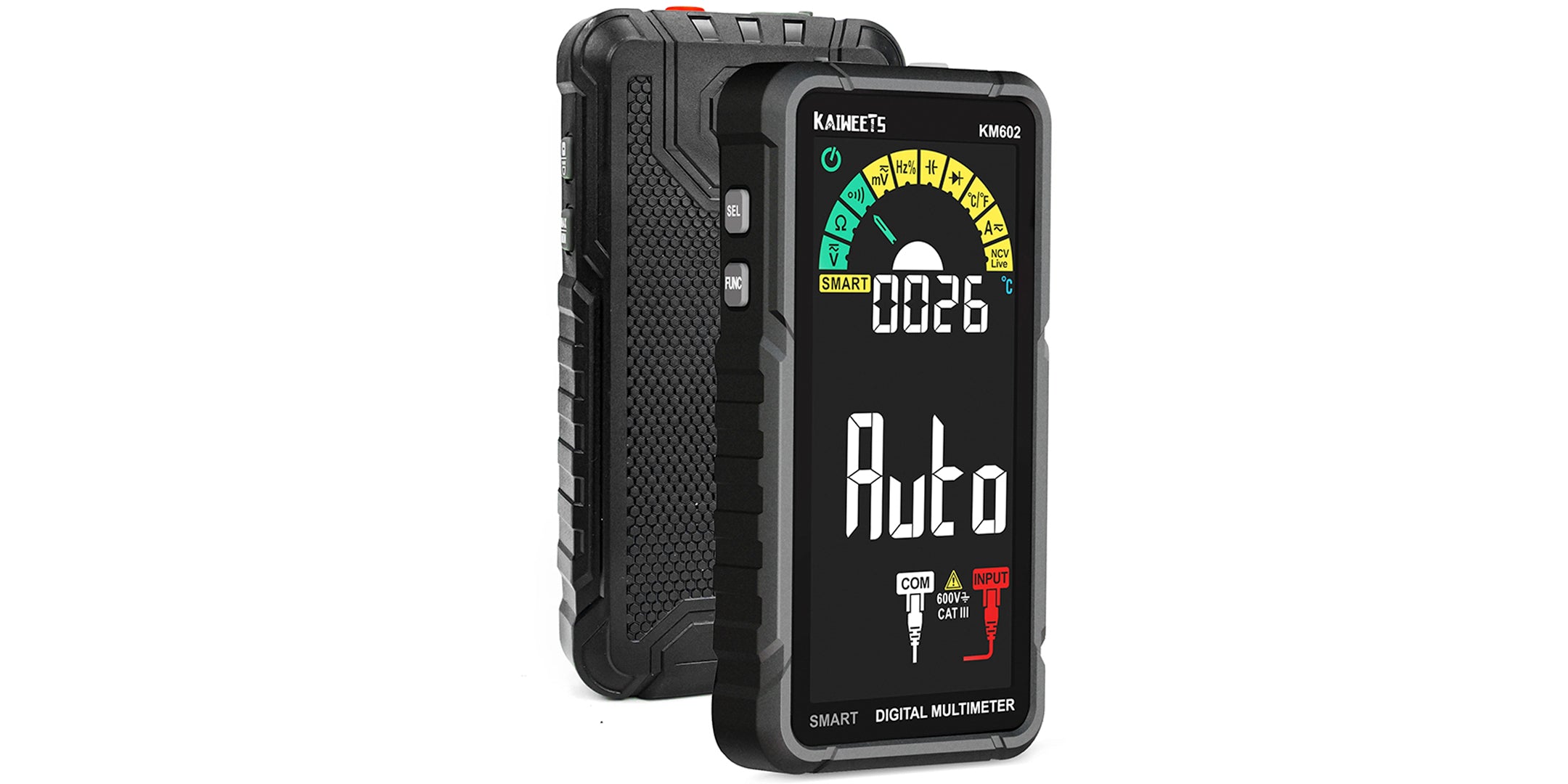

KAIWEETS KM602 Intelligentes Digitalmultimeter – 6000 Zählwerte Echteffektivwert
Betrugsprävention: Ihre Zahlung ist sicher und geschützt.
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.
Wiederaufladbares Multimeter: Das Tester-Multimeter verfügt über eine wiederaufladbare Funktion und einen eingebauten 1200-mAh-Akku. Das Multimeter hält länger. Und was noch praktischer ist: Sie müssen die Batterie nicht mehr manuell austauschen.
Breite Anwendung: Dieses intelligente Digitalmultimeter eignet sich zur Diagnose von Problemen mit der Automobil-, Industrie- und Haushaltselektrik. Das Multimeter kann Wechsel- und Gleichspannung, Widerstand, Durchgang, Wechsel- und Gleichstrom, Kapazität, Frequenz, Diode, Arbeitszyklus, Temperatur, NCV und stromführende Leitung genau messen.
Sicherheitshinweis: Das Profi-Multimeter verfügt über zwei Sicherungen zum Schutz vor Durchbrennen und Überlastung. Überspannungsschutz, Anti-Hochspannungsschaltung. Weiche Silikonhülle schützt bei Stürzen.
| Specifications | Range | Accuracy |
|---|---|---|
| DC Voltage | 600.0mV/6.000V/60.00V/600.0V | ±(0.5%+3) |
| AC Voltage | 600.0mV/6.000V/60.00V/600.0V | ±(1.0%+3) |
| DC Current | 600.0mA/6.000A | ±(1.2%+3) |
| 10A | ±(1.5%+3) | |
| AC Current | 600.0mA/6.000A | ±(1.5%+3) |
| 10A | ±(2.0%+3) | |
| Resistance | 600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/6.000MΩ/60.00MΩ | ±(1.0%+3) |
| Capacitance | 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF | ±(4.0%+5) |
| Frequency | 60.00Hz/600.0Hz/6.000kHz/60.00kHz/600.0kHz/6.000MHz/10.00MHz | ±(1.0%+3) |
| Duty | 1%~99% | ±(3.0%+3) |
| Temperature | -20℃~1000℃~-4°F~1832°F | ±(1.0%+3) |
| Bandwidth | 40~1KHz | |
| Fuse Protection | 10A/250V/Φ5*20mm fuse | |
1 x KM602 Smart Multimeter
2 x Test Leads
1 x User Manual
1 x Thermocouple
1 x Charging Cable
1 x Durable EVA Bag
Smart & Manual Mode
This smart multimeter enters smart mode by default. In smart mode, the voltmeter automatically measures voltage, resistance, and continuity. It can identify the measurement content and select the range with the best resolution, making the measurement more convenient and faster.
Lithium Battery
The voltmeter has a built-in rechargeable battery that allows the meter to be used for extended periods without the need for frequent battery replacements. The rechargeable battery can be charged via cable, making it convenient to use in various locations. The battery life is impressive, and the device can be charged quickly, ensuring that it is always ready for use.
NCV & LiveTest
When the indicator light is on, it means there is voltage. Please pay attention to your safetyLive wire testing with the red test lead. When it detects a live wire, the clamp meter will reflect with the audio alarm.

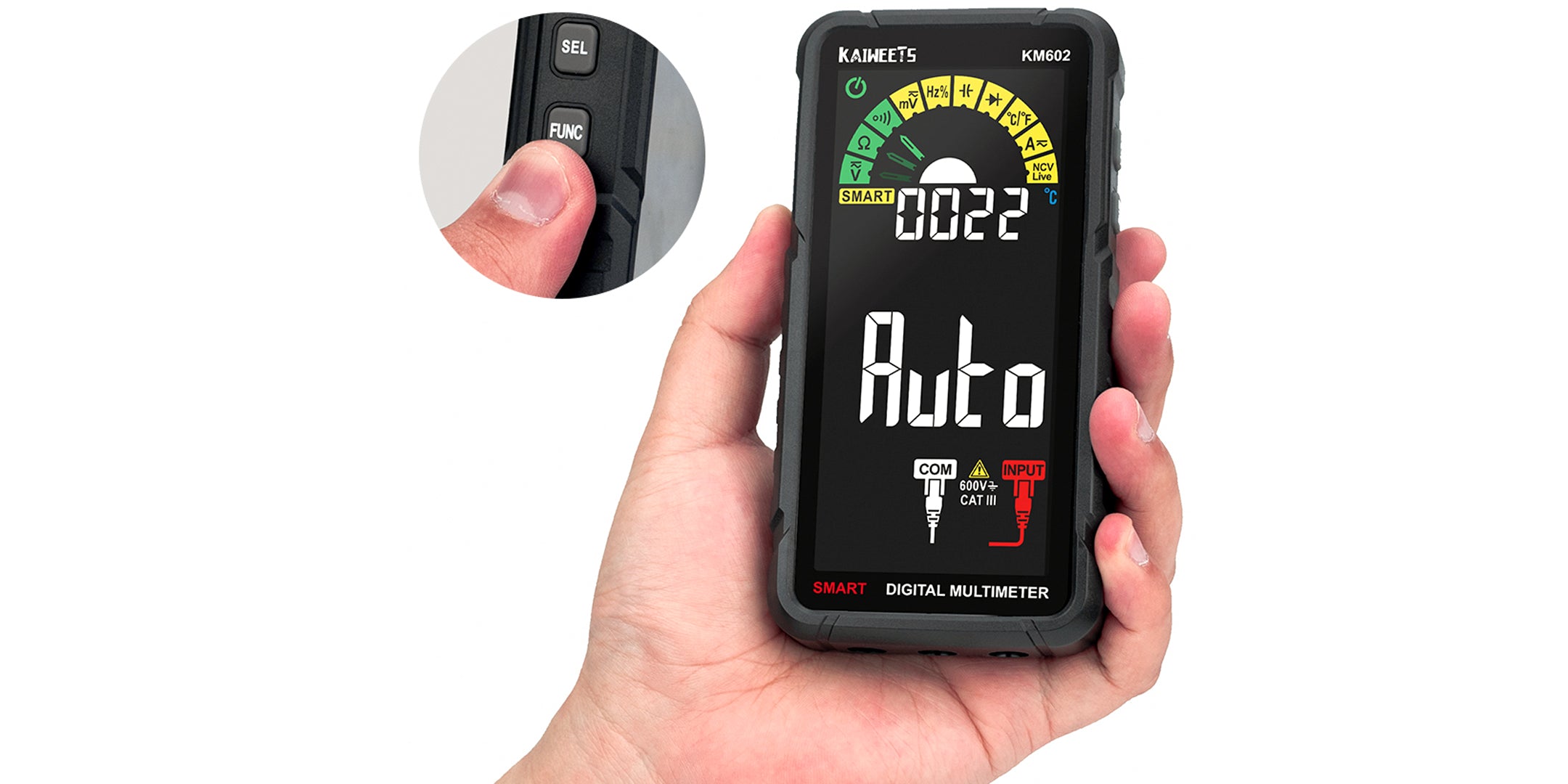

Easy Switch
It has an 'Auto' mode that enables it to automatically detect and respond to the most frequent measures, such as Volts AC or DC, resistance, or continuity. All that is required in this intelligent mode is the attachment of the probes
Auto shutdown & Flashlight
KM602 multimeter will automatically shut down if there is no operation within 15 minutes, and has flashlight for easy reading even in bright or dim places.
