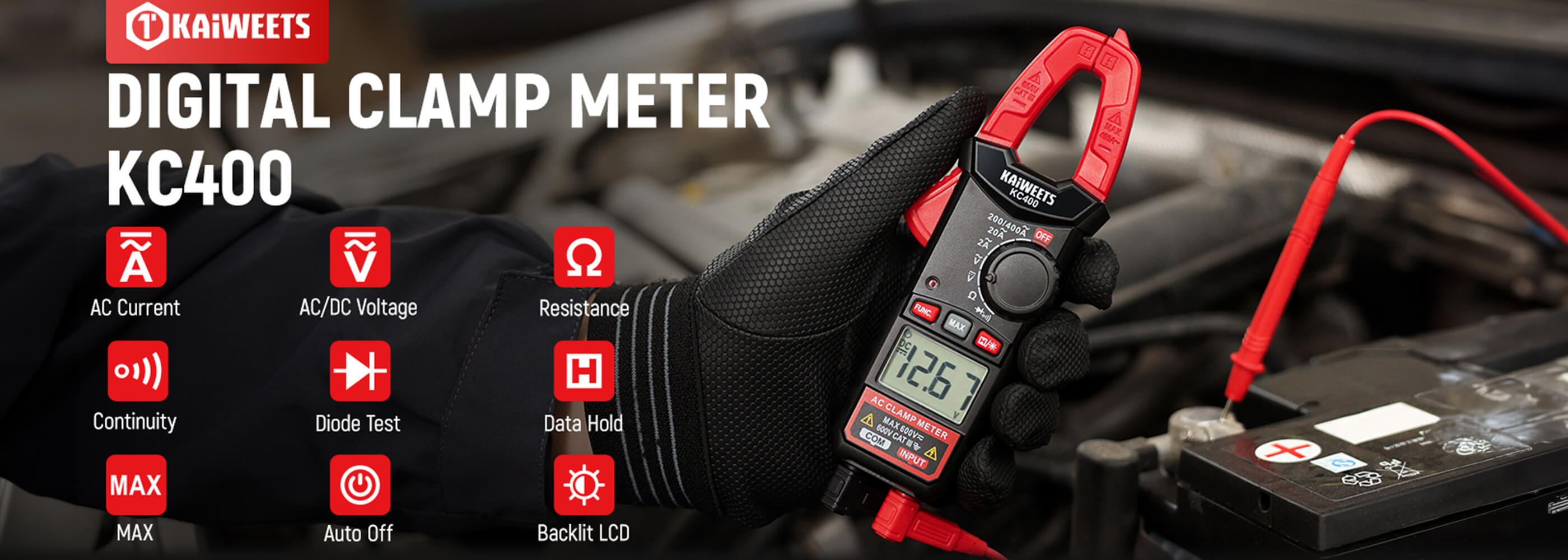

KAIWEETS KC400 Digital Clamp Meter
5-7 Business Days to America and Europe.
15-30 Business Days to Other Areas.
30-Day No-Hassle Returns & 3-Year Warranty
Terms of use:
1. This product (KAIWEETS Care) is a special service product and cannot be returned.
2. Valid for three year starting from the date of purchase.
3. If the product or its accessories are damaged by non-human factors, we will replace the accessories or product for free (free shipping and free replacement).
4. For kaiweets.com orders only.
5. KAIWEETS Tools has the final right to explain the terms.

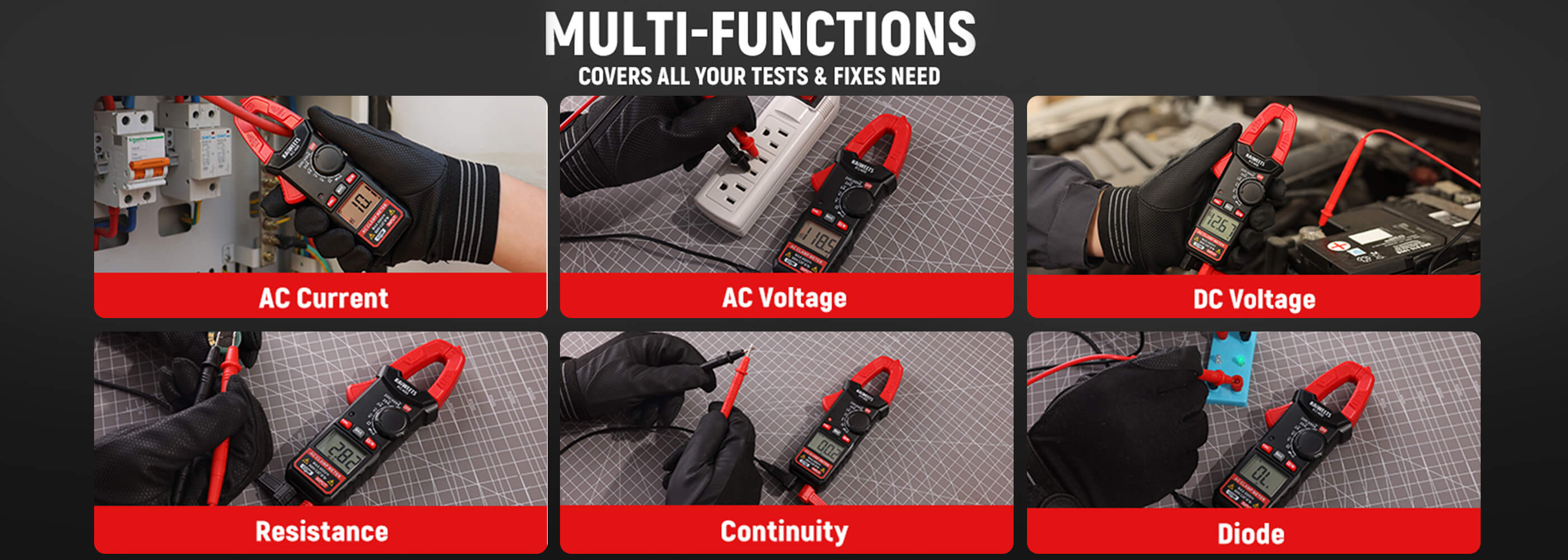

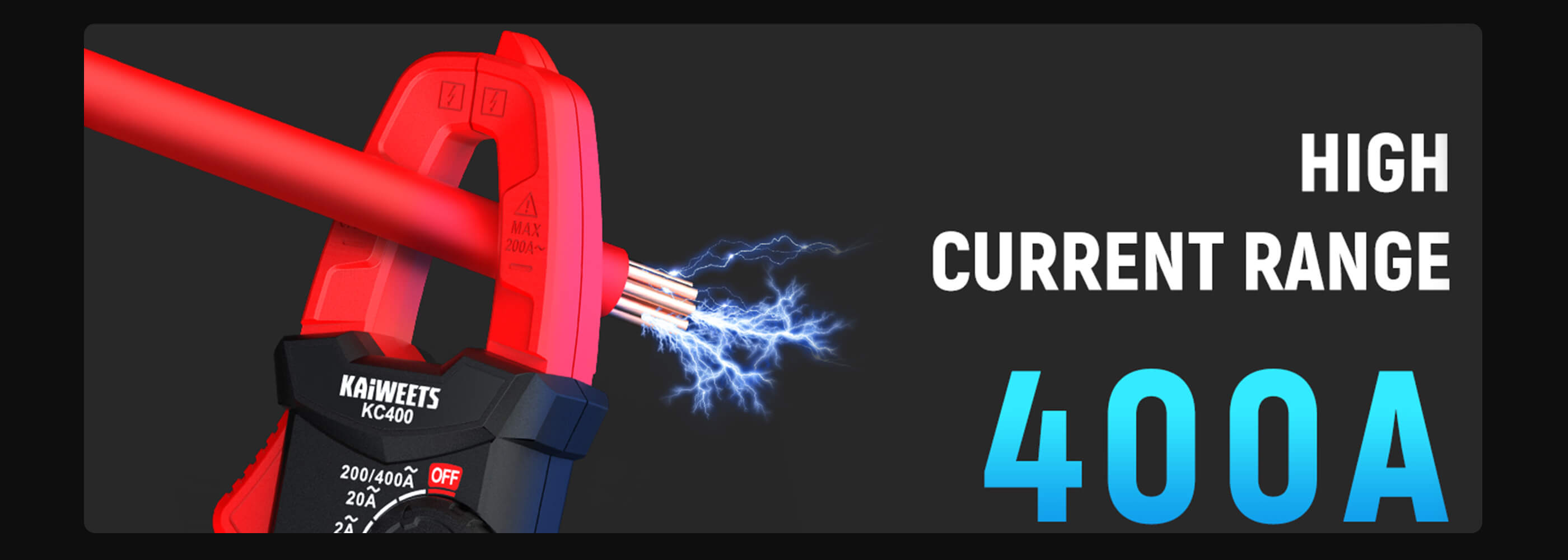

5-in-1 Multifunctional Clamp Meter: Covers AC current (2A/20A/200A/400A max), AC/DC voltage (600V max), resistance (20MΩ max), continuity & diode polarity detection; one-click function switch via FUNC button meets daily & professional electrical measurement needs.
High Precision & Reliable Performance: 2000-count clear digital display ensures accurate readings (±2.5% rdg+8 digits for AC current; ±0.5% rdg+5 digits for DC voltage); CAT III 600V rating delivers reliable performance for high-voltage applications.

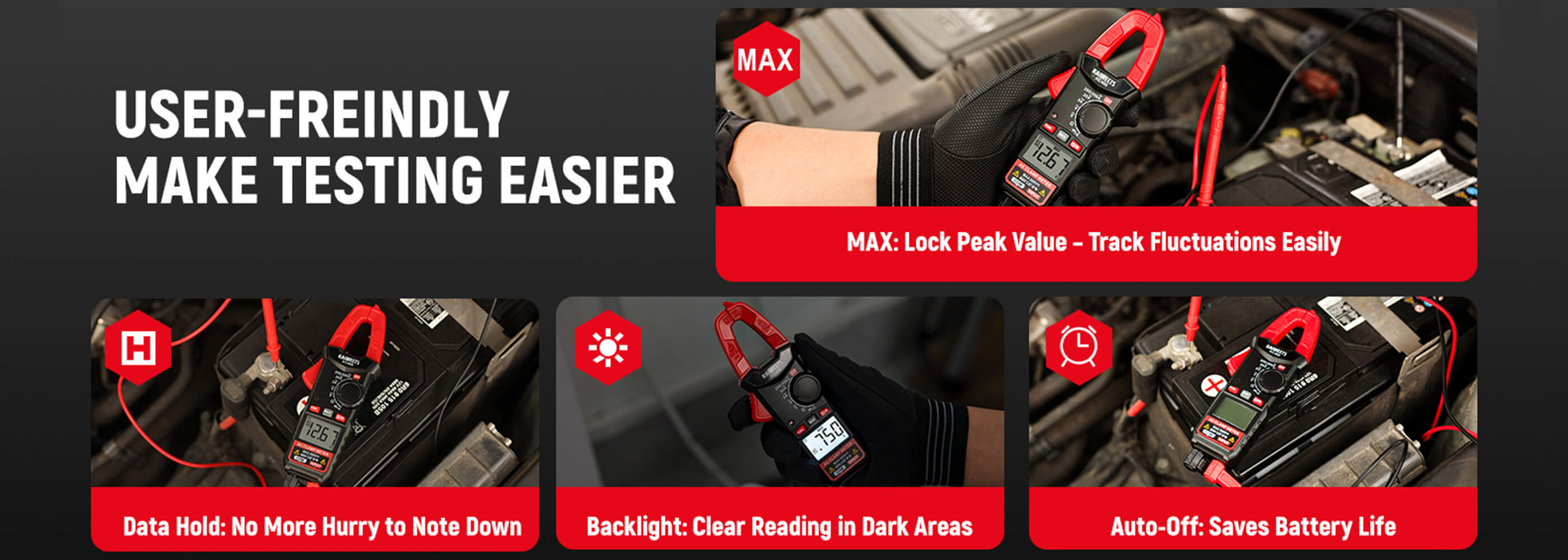

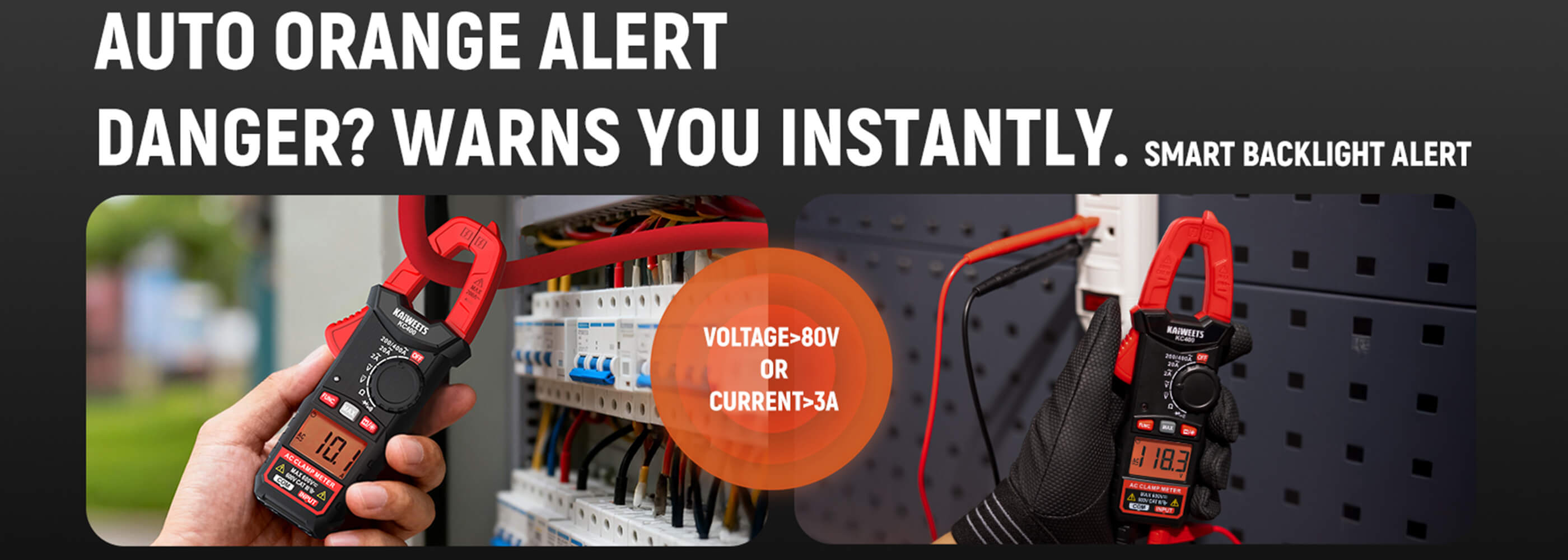

Compact & User-Friendly Design: Palm-sized body (1/2 smaller than traditional clamp meters) fits easily in tool bags for on-the-go use. Built-in backlight (auto-on for >80V/3A measurements), data hold, max value lock, and 15-minute auto power-off to save battery (2×AAA included).
Widely Applicable Scenarios: Ideal for household circuit repairs, appliance testing (refrigerators/air conditioners), automotive electrical systems (battery current/starter circuits) & electrician maintenance; precise measurement for small wires with conductor center positioning (no extra error).
Ready-to-Use Complete Package: Includes 1×KC400 clamp multimeter, 2×high-quality test probes, 1×user manual & 2×AAA batteries; KAIWEETS 3-year warranty guarantees worry-free purchase.
Descripción
5-in-1 Multifunctional Clamp Meter: Covers AC current (2A/20A/200A/400A max), AC/DC voltage (600V max), resistance (20MΩ max), continuity & diode polarity detection; one-click function switch via FUNC button meets daily & professional electrical measurement needs.
High Precision & Reliable Performance: 2000-count clear digital display ensures accurate readings (±2.5% rdg+8 digits for AC current; ±0.5% rdg+5 digits for DC voltage); CAT III 600V rating delivers reliable performance for high-voltage applications.
Compact & User-Friendly Design: Palm-sized body (1/2 smaller than traditional clamp meters) fits easily in tool bags for on-the-go use. Built-in backlight (auto-on for >80V/3A measurements), data hold, max value lock, and 15-minute auto power-off to save battery (2×AAA included).
Widely Applicable Scenarios: Ideal for household circuit repairs, appliance testing (refrigerators/air conditioners), automotive electrical systems (battery current/starter circuits) & electrician maintenance; precise measurement for small wires with conductor center positioning (no extra error).
Ready-to-Use Complete Package: Includes 1×KC400 clamp multimeter, 2×high-quality test probes, 1×user manual & 2×AAA batteries; KAIWEETS 3-year warranty guarantees worry-free purchase.
| Specifications | Range | Resolution | Accuracy / Function |
|---|---|---|---|
| DC Voltage |
200mV 2V 20V 200V 600V |
0.1mV 0.001V 0.01V 0.1V 1V |
±(0.5% of reading + 5 digits) |
| AC Voltage |
2V 20V 200V 600V |
0.001V 0.01V 0.1V 1V |
±(1.0% of reading + 5 digits) Frequency range: 40Hz–1kHz |
| AC Current |
2A 20A 200A |
0.001A 0.01A 0.1A |
±(2.5% of reading + 8 digits) |
| 400A | 1A |
±(3.0% of reading + 8 digits) Maximum current: 400A Frequency response: 45Hz–65Hz |
|
| Resistance |
200Ω 2kΩ 20kΩ 200kΩ 2MΩ 20MΩ |
0.1Ω 0.001kΩ 0.01kΩ 0.1kΩ 0.001MΩ 0.01MΩ |
±(1.0% of reading + 5 digits) Overload protection: 250V |
| Continuity | Less than 30Ω | — |
The buzzer sounds and the LED indicator lights up. Test voltage: About 2V Overload protection: 250V |
| Diode Test | Forward voltage test | — |
Displays the approximate forward voltage of the diode. Reverse DC voltage: About 2.0V Overload protection: 250V |
| General Specifications | |||
| Overvoltage Category | CAT III 600V | ||
| Pollution Level | 2 | ||
| Operating Altitude | <2000m | ||
| Operating Temperature and Humidity |
0°C–40°C <80% RH, non-condensing |
||
| Storage Temperature and Humidity |
−10°C–60°C <70% RH, remove batteries |
||
| Temperature Coefficient |
0.1 × specified accuracy/°C When below 18°C or above 28°C |
||
| Maximum Input Voltage | 600V | ||
| Input Impedance | 10MΩ | ||
| Sampling Rate | About 3 times per second | ||
| Display | 2000-count display | ||
| Over-range Indication | Displays “OL” | ||
| Low Battery Indication | Low battery symbol displayed | ||
| Input Polarity Indication | Automatically displays “−” | ||
| Power Supply | 2 × 1.5V AAA batteries | ||
Parameters
| Specifications | Range | Resolution | Accuracy / Function |
|---|---|---|---|
| DC Voltage |
200mV 2V 20V 200V 600V |
0.1mV 0.001V 0.01V 0.1V 1V |
±(0.5% of reading + 5 digits) |
| AC Voltage |
2V 20V 200V 600V |
0.001V 0.01V 0.1V 1V |
±(1.0% of reading + 5 digits) Frequency range: 40Hz–1kHz |
| AC Current |
2A 20A 200A |
0.001A 0.01A 0.1A |
±(2.5% of reading + 8 digits) |
| 400A | 1A |
±(3.0% of reading + 8 digits) Maximum current: 400A Frequency response: 45Hz–65Hz |
|
| Resistance |
200Ω 2kΩ 20kΩ 200kΩ 2MΩ 20MΩ |
0.1Ω 0.001kΩ 0.01kΩ 0.1kΩ 0.001MΩ 0.01MΩ |
±(1.0% of reading + 5 digits) Overload protection: 250V |
| Continuity | Less than 30Ω | — |
The buzzer sounds and the LED indicator lights up. Test voltage: About 2V Overload protection: 250V |
| Diode Test | Forward voltage test | — |
Displays the approximate forward voltage of the diode. Reverse DC voltage: About 2.0V Overload protection: 250V |
| General Specifications | |||
| Overvoltage Category | CAT III 600V | ||
| Pollution Level | 2 | ||
| Operating Altitude | <2000m | ||
| Operating Temperature and Humidity |
0°C–40°C <80% RH, non-condensing |
||
| Storage Temperature and Humidity |
−10°C–60°C <70% RH, remove batteries |
||
| Temperature Coefficient |
0.1 × specified accuracy/°C When below 18°C or above 28°C |
||
| Maximum Input Voltage | 600V | ||
| Input Impedance | 10MΩ | ||
| Sampling Rate | About 3 times per second | ||
| Display | 2000-count display | ||
| Over-range Indication | Displays “OL” | ||
| Low Battery Indication | Low battery symbol displayed | ||
| Input Polarity Indication | Automatically displays “−” | ||
| Power Supply | 2 × 1.5V AAA batteries | ||

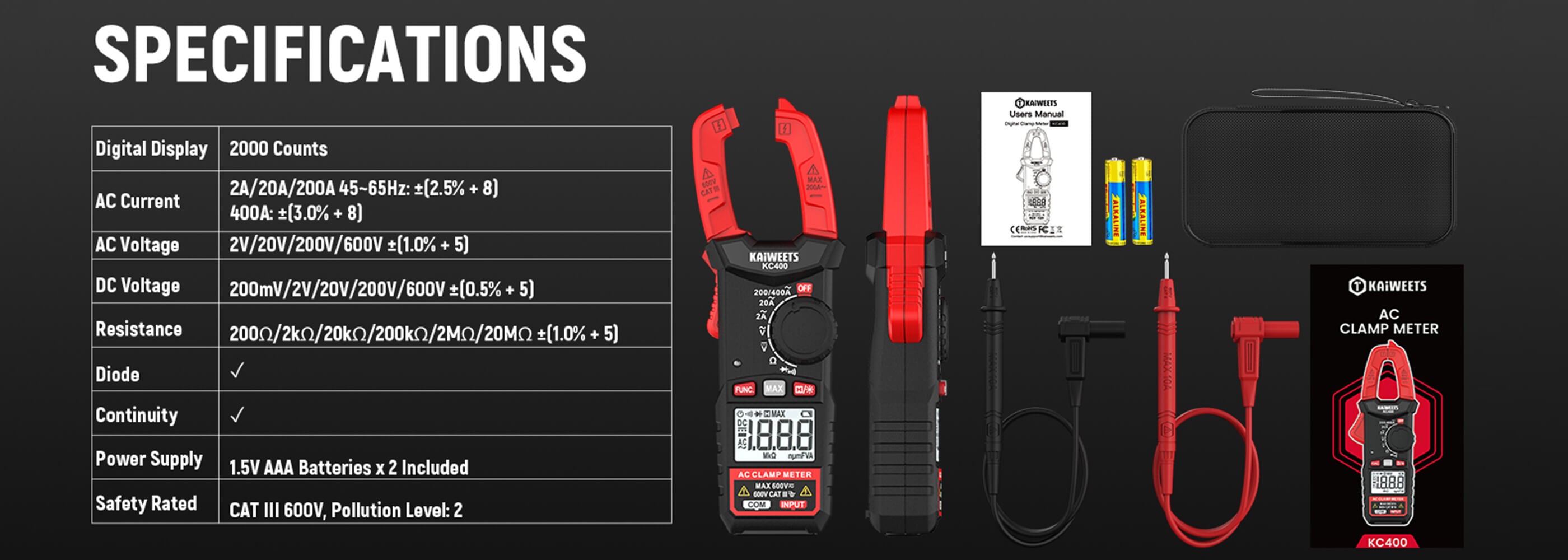

1 × KC400 Clamp multimeter
2 × High-quality test probes
1 × User manual
2 × AAA batteries
Package Lists
1 × KC400 Clamp multimeter
2 × High-quality test probes
1 × User manual
2 × AAA batteries
